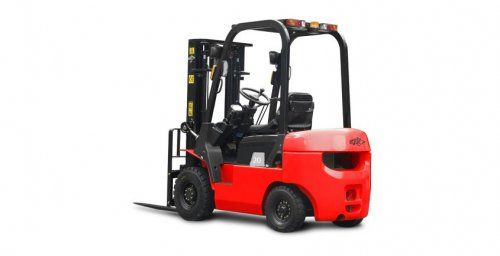

EP CPCD20N
Contents:
Dimensions
| Length To Fork Face | 8.31 ft in (2530 mm) |
| Overall Width | 3.79 ft in (1155 mm) |
| Overall Height - Mast Lowered | 6.52 ft in (1985 mm) |
| Wheelbase | 5.42 ft in (1650 mm) |
| Ground Clearance | 4.14 in (105 mm) |
| Height To Top Of Overhead Guard | 6.96 ft in (2120 mm) |
| Max Fork Height | 13.28 ft in (4045 mm) |
| Right Angle Stack | 8.7 ft in (2650 mm) |
| Turning Radius | 7.14 ft in (2175 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Load Capacity | 4409.25 lb (2000 kg) |
| Lower Speed | _ - (30 m/min) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | _ - (24.6 m/min) |
Engine
| Engine Make | 2347 |
| Engine Model | A2300 |
| Power | 47 hp (35 kw) |
| Torque | 110.7 lb ft (150 Nm) |
| Displacement | 140.4 cu in (2.3 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 7584 lb (3440 kg) |
| Tire Type | front 7.00-12-12PR rear 6.00-9-10PR |
| Max Speed | 13.1 mph (21 km/h) |
