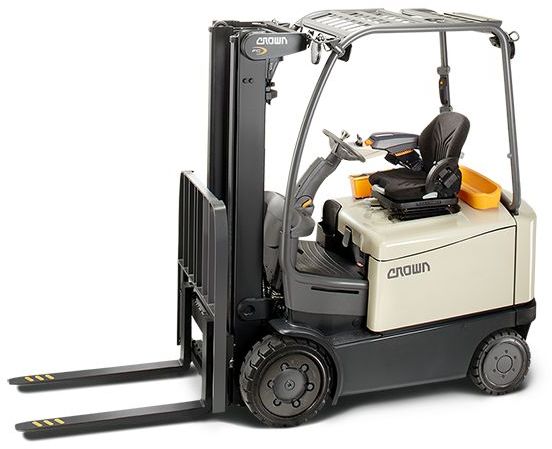

Crown FC 4520/25-40
Contents:
Dimensions
| Length To Fork Face | 7 ft in (2133.6 mm) |
| Overall Width | 3.62 ft in (1102.38 mm) |
| Overall Height - Mast Lowered | 6.92 ft in (2108.22 mm) |
| Wheelbase | 4.56 ft in (1389.37 mm) |
| Ground Clearance | 3 in (76.2 mm) |
| Height To Top Of Overhead Guard | 7.17 ft in (2184.42 mm) |
| Max Fork Height | 15.67 ft in (4775.22 mm) |
| Right Angle Stack | 7.6 ft in (2313.96 mm) |
| Turning Radius | 6.28 ft in (1912.62 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 5 degrees |
| Max Fork Spread | 36 in (914.4 mm) |
| Lower Speed | 84 ft/min (25.61 m/min) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 4000 lb (1814.37 kg) |
| Lift Speed | 71 ft/min (21.65 m/min) |
Engine
| Fuel Type | Electric 36V |
Operational
| Operating Weight | 11195 lb (5078 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 8.3 mph (13.4 km/h) |
