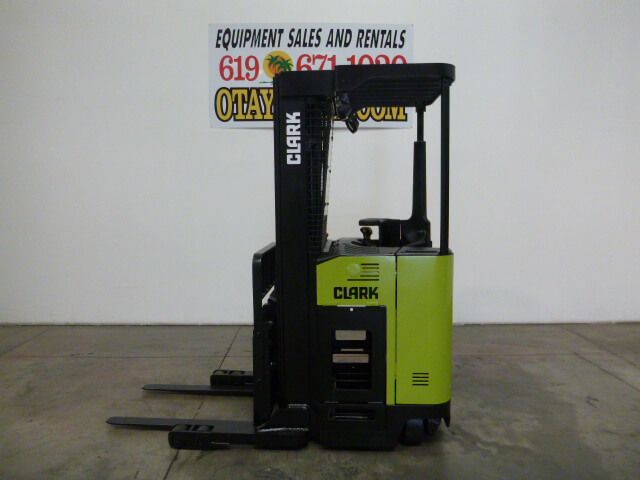

Clark Michigan NPR17
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 4.01 ft in (1222 mm) |
| Overall Width | 3.36 ft in (1022 mm) |
| Overall Height - Mast Lowered | 7.92 ft in (2413 mm) |
| Wheelbase | 4.68 ft in (1425 mm) |
| Ground Clearance | 1.74 in (44 mm) |
| Height To Top Of Overhead Guard | 7.92 ft in (2413 mm) |
| Max Fork Height | 17.5 ft in (5334 mm) |
| Right Angle Stack | 7.75 ft in (2362 mm) |
| Turning Radius | 5.55 ft in (1689 mm) |
Mast
| Mast Tip Forward | 3 degrees |
| Mast Tip Rear | 4 degrees |
| Load Capacity | 3500 lb (1587.58 kg) |
| Lower Speed | 90 ft/min (27.44 m/min) |
| Load Center | 24 in (609.6 mm) |
| Lift Speed | 42 ft/min (12.81 m/min) |
Engine
| Fuel Type | Electric 24V |
Operational
| Operating Weight | 6660 lb (3021 kg) |
| Tire Type | Solid |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 7.3 mph (11.6 km/h) |
