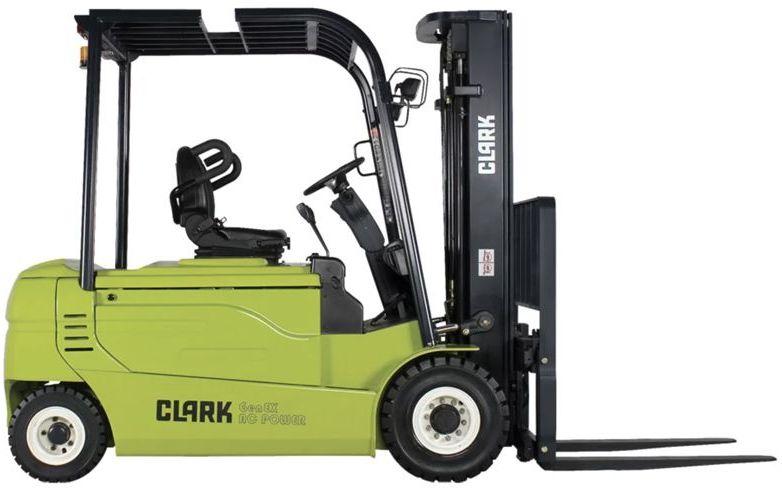

Clark Michigan GEX30
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.14 ft in (2479.03 mm) |
| Overall Width | 4.04 ft in (1229.35 mm) |
| Overall Height - Mast Lowered | 7.1 ft in (2164.08 mm) |
| Wheelbase | 5.75 ft in (1750.08 mm) |
| Ground Clearance | 3 in (76.2 mm) |
| Height To Top Of Overhead Guard | 7.05 ft in (2148.84 mm) |
| Max Fork Height | 10.49 ft in (3195.33 mm) |
| Turning Radius | 6.85 ft in (2087.88 mm) |
Mast
| Mast Tip Forward | 8 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 92 ft/min (28.05 m/min) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Load Center | 24 in (609.6 mm) |
| Lift Speed | 74 ft/min (22.56 m/min) |
Engine
| Fuel Type | Electric 80V |
Operational
| Operating Weight | 9548 lb (4331 kg) |
| Tire Type | Superelastic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.4 mph (15.2 km/h) |
