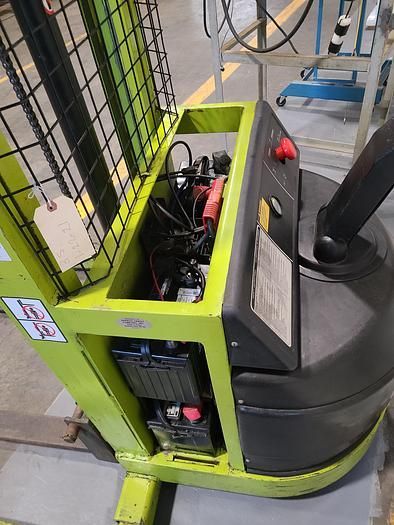

Clark Michigan CSM7
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 2.96 ft in (900 mm) |
| Overall Height - Mast Lowered | 6.84 ft in (2083 mm) |
| Wheelbase | 4.3 ft in (1310 mm) |
| Ground Clearance | 1.26 in (32 mm) |
| Height To Top Of Overhead Guard | 3.13 ft in (953 mm) |
| Max Fork Height | 12.5 ft in (3810 mm) |
| Turning Radius | 5.02 ft in (1530 mm) |
Mast
| Lower Speed | 22 ft/min (6.71 m/min) |
| Load Capacity | 1500 lb (680.39 kg) |
| Lift Speed | 22 ft/min (6.71 m/min) |
| Load Center | 24 in (609.6 mm) |
Engine
| Fuel Type | Electric 24V |
Operational
| Operating Weight | 1475 lb (669.1 kg) |
| Tire Type | Poly/Rubber |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 1 |
| Max Speed | 2.9 mph (4.7 km/h) |
