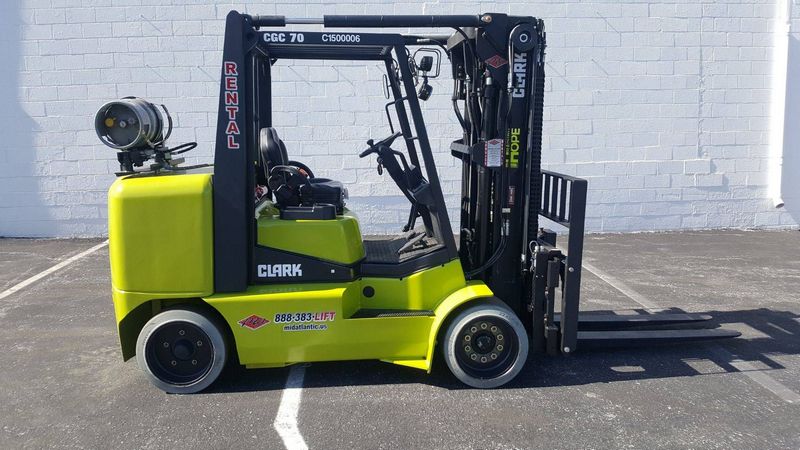

Clark Michigan CGC70
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 9.45 ft in (2878 mm) |
| Overall Width | 4.91 ft in (1494 mm) |
| Overall Height - Mast Lowered | 8.26 ft in (2515 mm) |
| Wheelbase | 6.25 ft in (1905 mm) |
| Ground Clearance | 3.78 in (96 mm) |
| Height To Top Of Overhead Guard | 7.57 ft in (2306 mm) |
| Max Fork Height | 14.51 ft in (4420 mm) |
| Right Angle Stack | 10.53 ft in (3208 mm) |
| Turning Radius | 8.96 ft in (2728 mm) |
Mast
| Mast Tip Forward | 8 degrees |
| Mast Tip Rear | 8 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 80 ft/min (24.39 m/min) |
| Max Fork Spread | 54 in (1371.6 mm) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 15500 lb (7030.69 kg) |
| Lift Speed | 60 ft/min (18.29 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2374 |
| Engine Model | Vortec 4300LT |
| Power | 93 hp (69.4 kw) |
| Torque | 235 lb ft (318.7 Nm) |
| Power Measured @ | 2400 rpm |
| Displacement | 262 cu in (4.3 L) |
| Torque Measured @ | 2000 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 20859 lb (9461.5 kg) |
| Tire Type | Cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.2 mph (16.5 km/h) |
