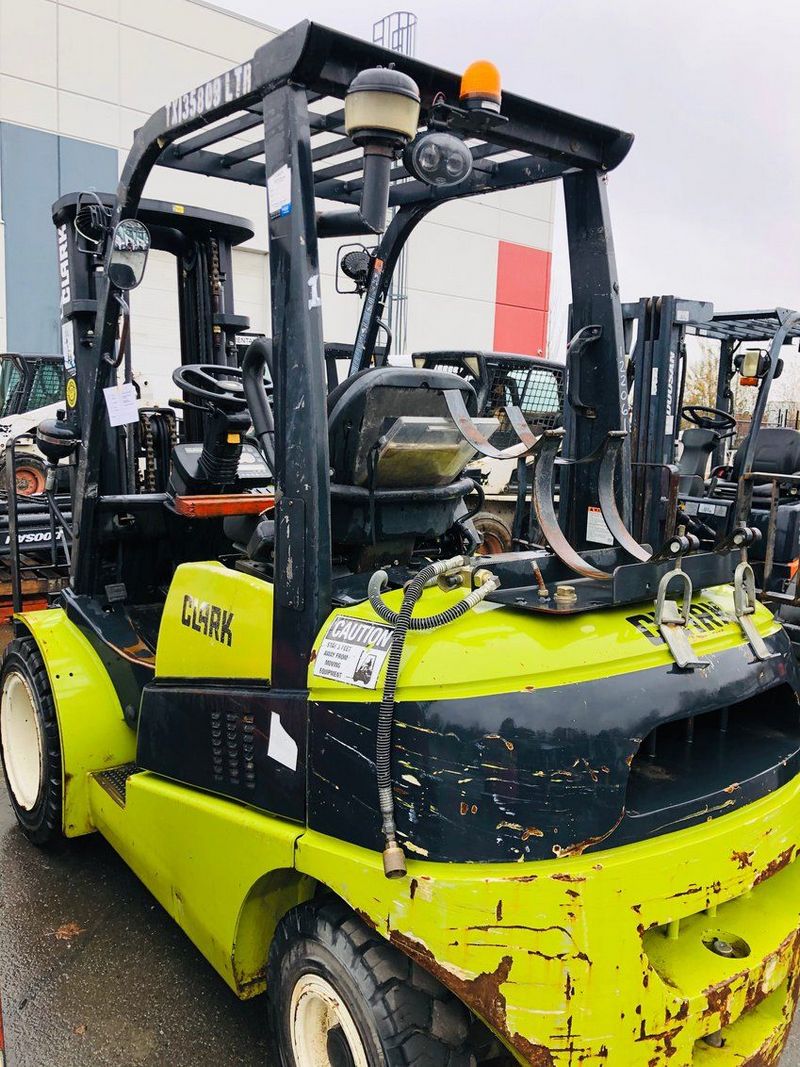

Clark Michigan C30L
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.76 ft in (2668 mm) |
| Overall Width | 4.06 ft in (1237 mm) |
| Overall Height - Mast Lowered | 7.16 ft in (2180 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.9 in (149.87 mm) |
| Height To Top Of Overhead Guard | 7.16 ft in (2180 mm) |
| Max Fork Height | 15.75 ft in (4800 mm) |
| Right Angle Stack | 9.46 ft in (2882 mm) |
| Turning Radius | 7.9 ft in (2405 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 89 ft/min (27.13 m/min) |
| Max Fork Spread | 39 in (990.6 mm) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Lift Speed | 102 ft/min (31.09 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2251 |
| Engine Model | 4G64 |
| Power | 47.5 hp (35.5 kw) |
| Torque | 120 lb ft (162.7 Nm) |
| Power Measured @ | 2250 rpm |
| Displacement | 143 cu in (2.4 L) |
| Torque Measured @ | 1400 rpm |
| Fuel Type | LPG |
Operational
| Operating Weight | 9786 lb (4438.9 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12.5 mph (20.2 km/h) |
