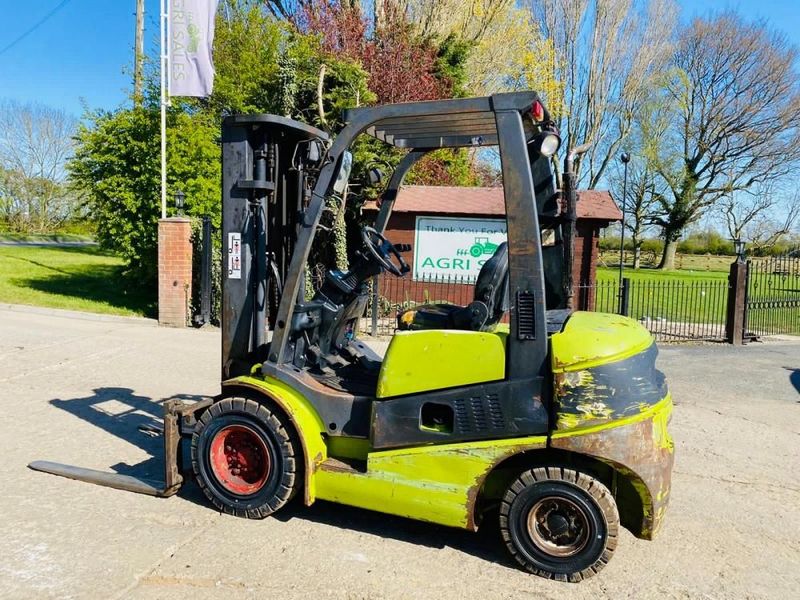

Clark Michigan C25D
Browse All Clark Michigan or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.4 ft in (2558 mm) |
| Overall Width | 4.02 ft in (1225 mm) |
| Overall Height - Mast Lowered | 7.11 ft in (2165 mm) |
| Wheelbase | 5.32 ft in (1620 mm) |
| Ground Clearance | 5.3 in (134.62 mm) |
| Height To Top Of Overhead Guard | 7.11 ft in (2165 mm) |
| Max Fork Height | 15.75 ft in (4800 mm) |
| Right Angle Stack | 9.04 ft in (2755 mm) |
| Turning Radius | 7.55 ft in (2300 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 5 degrees |
| Number Of Mast Sections | 3 |
| Lower Speed | 89 ft/min (27.13 m/min) |
| Max Fork Spread | 39 in (990.6 mm) |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 5000 lb (2267.97 kg) |
| Lift Speed | 108 ft/min (32.92 m/min) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV94 |
| Power | 59 hp (44 kw) |
| Torque | 130 lb ft (176.3 Nm) |
| Power Measured @ | 2500 rpm |
| Displacement | 171 cu in (2.9 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | Diesel |
Operational
| Operating Weight | 8838 lb (4008.9 kg) |
| Tire Type | Pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 12 mph (19.4 km/h) |
