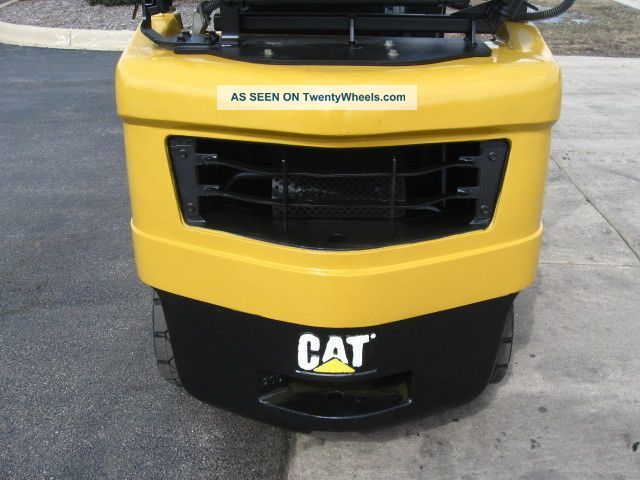

Caterpillar PC4000
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 7.71 ft in (2350 mm) |
| Overall Width | 3.5 ft in (1065 mm) |
| Overall Height - Mast Lowered | 7.03 ft in (2140 mm) |
| Wheelbase | 4.6 ft in (1400 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.89 ft in (2100 mm) |
| Max Fork Height | 10.93 ft in (3330 mm) |
| Turning Radius | 6.63 ft in (2020 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 10 degrees |
| Max Fork Spread | 36.23 in (920 mm) |
| Lower Speed | 98 ft/min (29.88 m/min) |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Lift Speed | 125 ft/min (38.1 m/min) |
Engine
| Engine Model | K21 |
| Power | 54.5 hp (40.7 kw) |
| Torque | 110 lb ft (149.2 Nm) |
| Power Measured @ | 2875 rpm |
| Displacement | 126 cu in (2.1 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | gas |
Operational
| Operating Weight | 6600 lb (2993.8 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.5 mph (18.6 km/h) |
