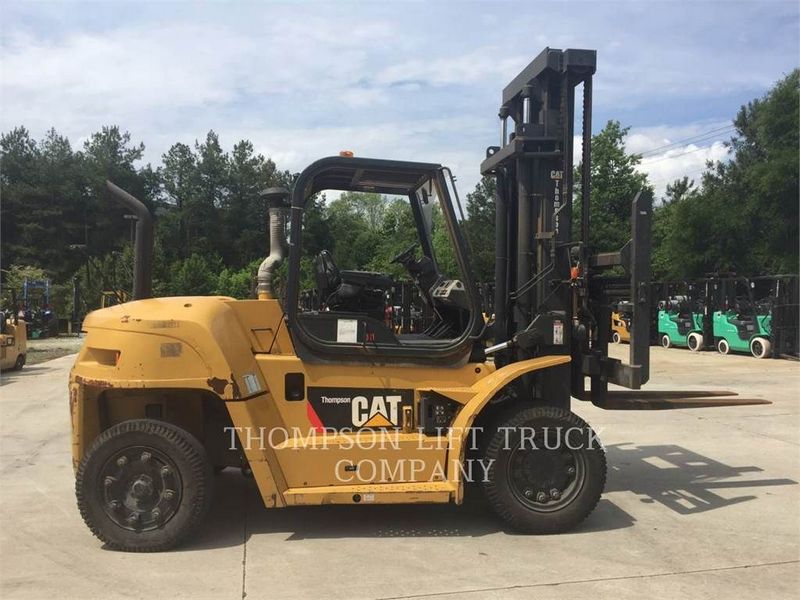

Caterpillar P26500
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 14.36 ft in (4375 mm) |
| Overall Width | 8.26 ft in (2515 mm) |
| Overall Height - Mast Lowered | 10.62 ft in (3235 mm) |
| Wheelbase | 9.19 ft in (2800 mm) |
| Ground Clearance | 8.67 in (220 mm) |
| Height To Top Of Overhead Guard | 9.57 ft in (2915 mm) |
| Max Fork Height | 11.09 ft in (3379 mm) |
| Turning Radius | 13.33 ft in (4060 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 79.77 in (2026 mm) |
| Lower Speed | 94 ft/min (28.66 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 26455.47 lb (12000 kg) |
| Lift Speed | 94 ft/min (28.66 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6M60-TL |
| Power | 148 hp (110.4 kw) |
| Torque | 450 lb ft (610.2 Nm) |
| Power Measured @ | 2100 rpm |
| Displacement | 460 cu in (7.6 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 37412 lb (16969.8 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 18 mph (29 km/h) |
