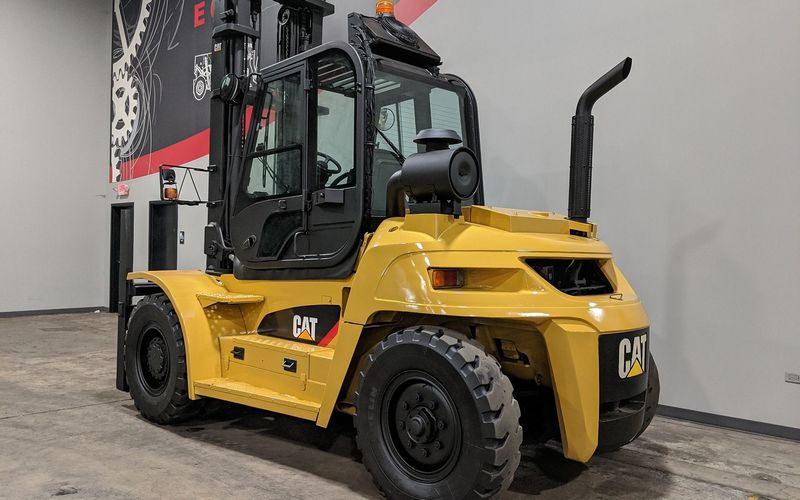

Caterpillar P17500
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 13.34 ft in (4065 mm) |
| Overall Width | 7.85 ft in (2390 mm) |
| Overall Height - Mast Lowered | 9.6 ft in (2925 mm) |
| Wheelbase | 8.7 ft in (2650 mm) |
| Ground Clearance | 8.47 in (215 mm) |
| Height To Top Of Overhead Guard | 9.34 ft in (2845 mm) |
| Max Fork Height | 11.04 ft in (3364 mm) |
| Turning Radius | 12.57 ft in (3830 mm) |
Mast
| Mast Tip Forward | 15 degrees |
| Mast Tip Rear | 12 degrees |
| Max Fork Spread | 65.75 in (1670 mm) |
| Lower Speed | 108 ft/min (32.92 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 17636.98 lb (8000 kg) |
| Lift Speed | 112 ft/min (34.14 m/min) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2251 |
| Engine Model | 6M60-TL |
| Power | 148 hp (110.4 kw) |
| Torque | 450 lb ft (610.2 Nm) |
| Power Measured @ | 2100 rpm |
| Displacement | 460 cu in (7.6 L) |
| Torque Measured @ | 1600 rpm |
| Fuel Type | diesel |
Operational
| Operating Weight | 27646 lb (12540.1 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 20 mph (32.2 km/h) |
