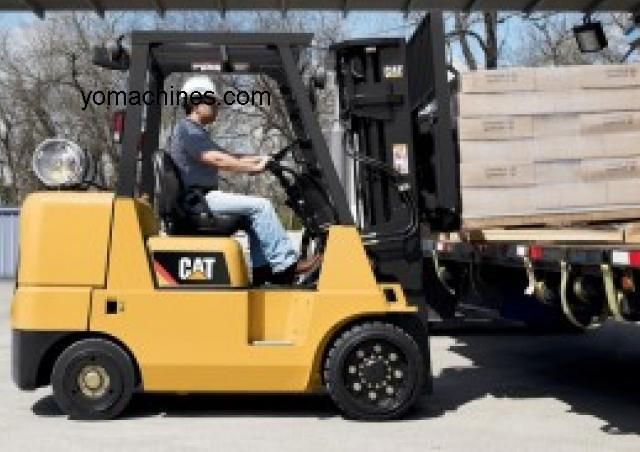

Caterpillar GC70K STR
Browse All Caterpillar or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 8.96 ft in (2730 mm) |
| Overall Width | 4.73 ft in (1440 mm) |
| Overall Height - Mast Lowered | 7.06 ft in (2150 mm) |
| Wheelbase | 6.01 ft in (1830 mm) |
| Ground Clearance | 3.94 in (100 mm) |
| Height To Top Of Overhead Guard | 7.4 ft in (2255 mm) |
| Max Fork Height | 7.75 ft in (2360 mm) |
| Turning Radius | 8.11 ft in (2470 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 9 degrees |
| Max Fork Spread | 47.8 in (1214.12 mm) |
| Lower Speed | 77 ft/min (23.47 m/min) |
| Load Center | 23.63 in (600 mm) |
| Load Capacity | 15432.36 lb (7000 kg) |
| Lift Speed | 77 ft/min (23.47 m/min) |
Engine
| Engine Make | 2374 |
| Engine Model | V6 |
| Power | 92.5 hp (69 kw) |
| Torque | 220 lb ft (298.3 Nm) |
| Power Measured @ | 2450 rpm |
| Displacement | 262402.2 cu in (4300 L) |
| Torque Measured @ | 1200 rpm |
| Fuel Type | gas |
Operational
| Operating Weight | 21870 lb (9920.1 kg) |
| Tire Type | cushion |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 14 mph (22.6 km/h) |
