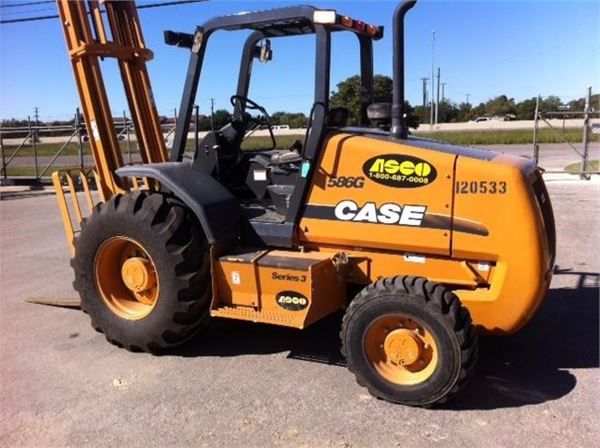

Case 586G
Contents:
Dimensions
| Overall Width | 6.93 ft in (2110 mm) |
| Overall Height - Mast Lowered | 10.58 ft in (3224.79 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Ground Clearance | 12.01 in (305 mm) |
| Max Fork Height | 15 ft in (4570 mm) |
| Turning Radius | 11.5 ft in (3505.2 mm) |
Mast
| Mast Tip Forward | 45 degrees |
| Mast Tip Rear | 15 degrees |
| Load Center | 24 in (609.6 mm) |
| Load Capacity | 6000 lb (2721.56 kg) |
| Lift Speed | 105 ft/min (32.01 m/min) |
Engine
| Engine Make | 2239 |
| Engine Model | 4-390 |
| Power | 73 hp (54.5 kw) |
| Torque | 199 lb ft (269.9 Nm) |
| Power Measured @ | 2200 rpm |
| Displacement | 239.3 cu in (4 L) |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 13360.1 lb (6060 kg) |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
