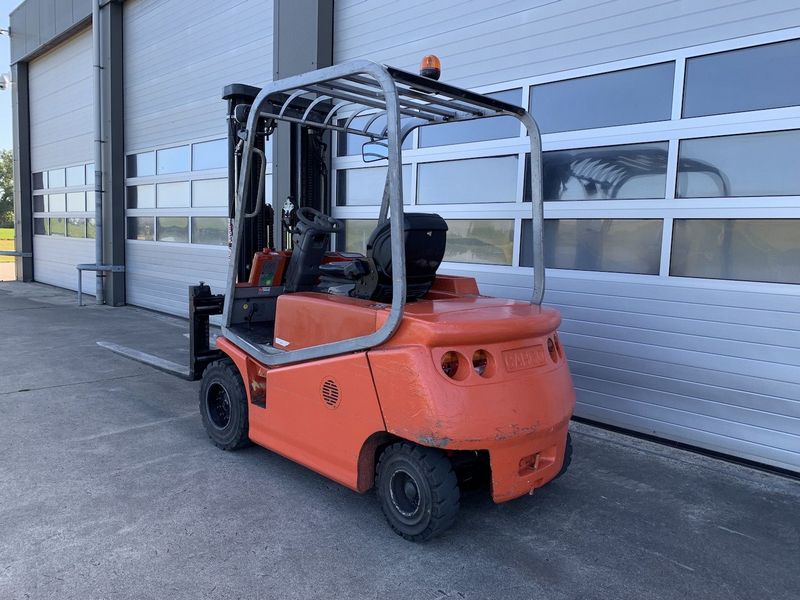

BT C4E300V
Contents:
Dimensions
| Length To Fork Face | 7.68 ft in (2340 mm) |
| Overall Width | 3.91 ft in (1190 mm) |
| Overall Height - Mast Lowered | 7.39 ft in (2252 mm) |
| Wheelbase | 5.11 ft in (1555 mm) |
| Ground Clearance | 4.81 in (122 mm) |
| Height To Top Of Overhead Guard | 7.04 ft in (2145 mm) |
| Max Fork Height | 10.37 ft in (3160 mm) |
| Turning Radius | 7.24 ft in (2205 mm) |
Mast
| Mast Tip Forward | 2.3 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 118.12 ft/min (36 m/min) |
| Load Capacity | 6613.87 lb (3000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 98.43 ft/min (30 m/min) |
Engine
| Power | 18.8 hp (14 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 11243.6 lb (5100 kg) |
| Tire Type | front 6.50-10 rear 18x7-8 |
| Number Of Front Wheels | 2-4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 10.6 mph (17 km/h) |
