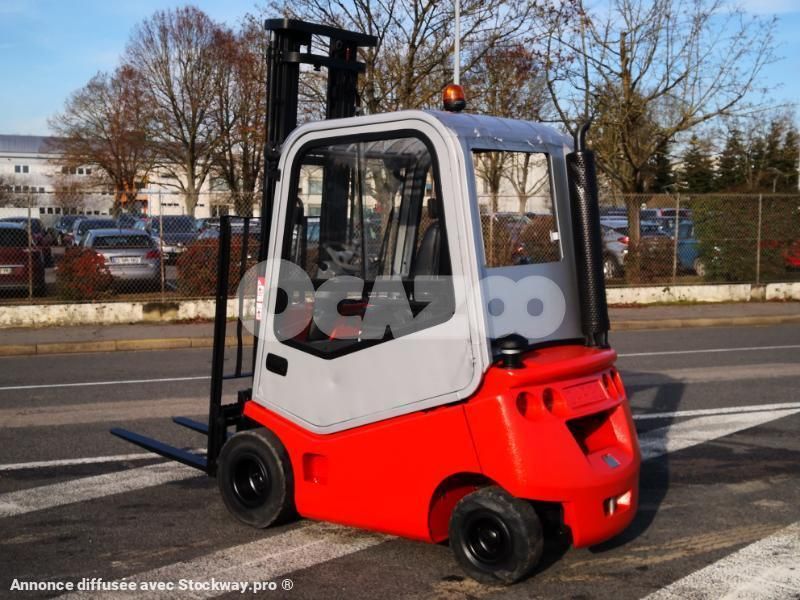

BT C4D150D
Contents:
Dimensions
| Length To Fork Face | 7.47 ft in (2275 mm) |
| Overall Width | 3.61 ft in (1098 mm) |
| Overall Height - Mast Lowered | 6.76 ft in (2060 mm) |
| Wheelbase | 4.89 ft in (1490 mm) |
| Ground Clearance | 3.51 in (89 mm) |
| Height To Top Of Overhead Guard | 6.96 ft in (2120 mm) |
| Max Fork Height | 9.75 ft in (2970 mm) |
| Turning Radius | 6.79 ft in (2069 mm) |
Mast
| Mast Tip Forward | 5 degrees |
| Mast Tip Rear | 10 degrees |
| Lower Speed | 108.27 ft/min (33 m/min) |
| Load Capacity | 3306.94 lb (1500 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 108.27 ft/min (33 m/min) |
Engine
| Engine Make | 2304 |
| Engine Model | 1 DZ-II |
| Power | 53.7 hp (40 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 151.8 cu in (2.5 L) |
| Fuel Type | diesel |
Operational
| Operating Weight | 6834.4 lb (3100 kg) |
| Tire Type | front 23x9-10 rear 18x7-8 |
| Number Of Front Wheels | 2-4 |
| Number Of Rear Wheels | 2 |
| Max Speed | 11.2 mph (18 km/h) |
