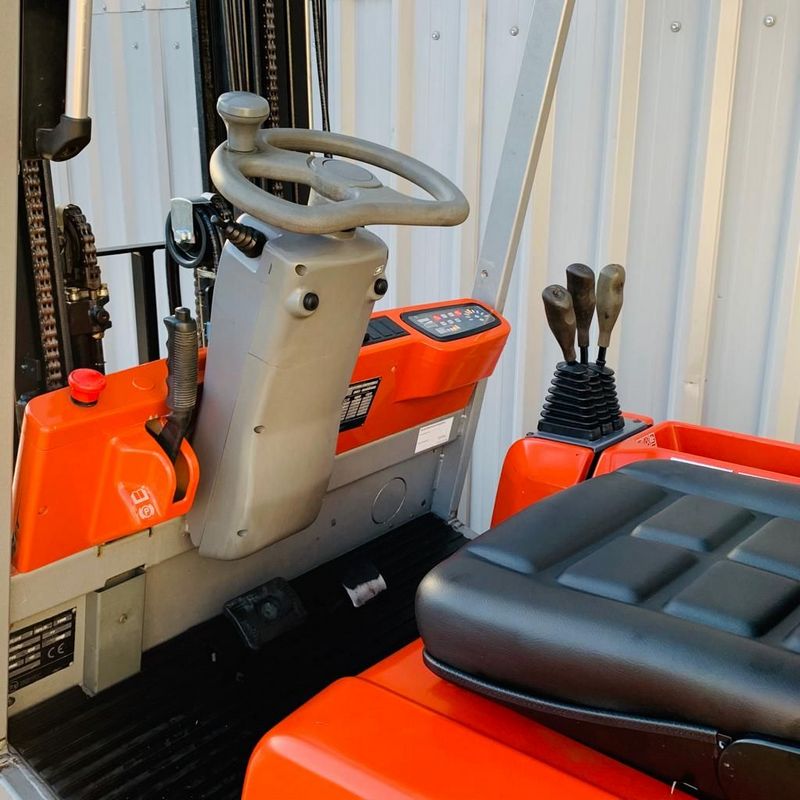

BT C3E120
Contents:
Dimensions
| Length To Fork Face | 6.17 ft in (1880 mm) |
| Overall Width | 3.25 ft in (990 mm) |
| Overall Height - Mast Lowered | 6.76 ft in (2060 mm) |
| Wheelbase | 4.27 ft in (1300 mm) |
| Ground Clearance | 3.55 in (90 mm) |
| Height To Top Of Overhead Guard | 6.4 ft in (1950 mm) |
| Max Fork Height | 9.75 ft in (2970 mm) |
| Turning Radius | 4.98 ft in (1517 mm) |
Mast
| Mast Tip Forward | 2.3 degrees |
| Mast Tip Rear | 6 degrees |
| Lower Speed | 98.43 ft/min (30 m/min) |
| Load Capacity | 2645.55 lb (1200 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 118.12 ft/min (36 m/min) |
Engine
| Power | 16.1 hp (12 kw) |
| Fuel Type | electric |
Operational
| Operating Weight | 6525.7 lb (2960 kg) |
| Tire Type | front 18x7-8 rear 16x6-8 |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.1 mph (14.5 km/h) |
