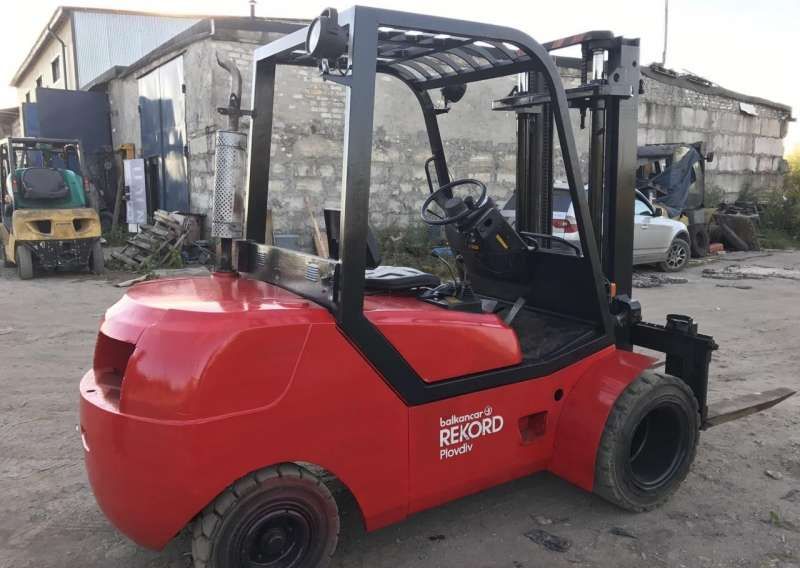

Balkancar Record ER 638.33.263 S
Browse All Balkancar Record or Forklift Models
Contents:
Dimensions
| Length To Fork Face | 7.26 ft in (2210 mm) |
| Overall Width | 3.88 ft in (1180 mm) |
| Overall Height - Mast Lowered | 7.35 ft in (2240 mm) |
| Wheelbase | 4.93 ft in (1500 mm) |
| Ground Clearance | 4.34 in (110 mm) |
| Height To Top Of Overhead Guard | 6.94 ft in (2115 mm) |
| Max Fork Height | 10.83 ft in (3300 mm) |
| Turning Radius | 6.4 ft in (1950 mm) |
Mast
| Mast Tip Forward | 4 degrees |
| Mast Tip Rear | 8 degrees |
| Lower Speed | 59.06 ft/min (18 m/min) |
| Load Capacity | 4409.25 lb (2000 kg) |
| Load Center | 19.69 in (500 mm) |
| Lift Speed | 55.12 ft/min (16.8 m/min) |
Engine
| Engine Make | 2385 |
| Power | 12.1 hp (9 kw) |
| Fuel Type | battery |
Operational
| Operating Weight | 8994.9 lb (4080 kg) |
| Tire Type | pneumatic |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 9.4 mph (15 km/h) |
