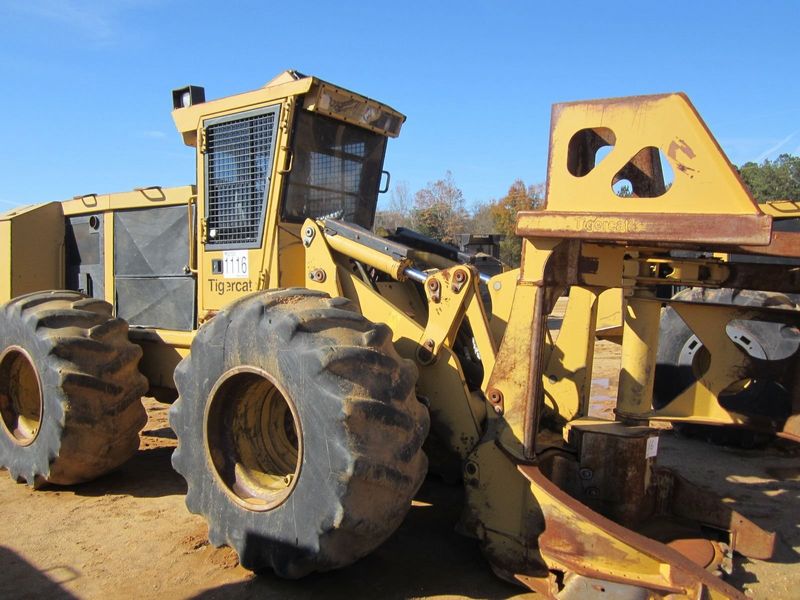

Tigercat 724E
Browse All Tigercat or Feller Buncher Models
Contents:
Dimensions
| Overall Length | 18.59 ft in (5665 mm) |
| Overall Width | 9.85 ft in (3000 mm) |
| Height To Top Of Cab | 11.09 ft in (3380 mm) |
| Wheelbase | 9.59 ft in (2920 mm) |
| Ground Clearance | 1.92 in (585 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 Tier III |
| Gross Power | 220 hp (164.1 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight W/O Attachment | 26980 lb (12238 kg) |
| Fuel Capacity | 89.9 gal (340 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Steering Articulation | 45 degrees |
| Tire Size | 28Lx 26 |
Transmission
| Transmission Type | Hydrostatic 2-speed mechanical shift |
