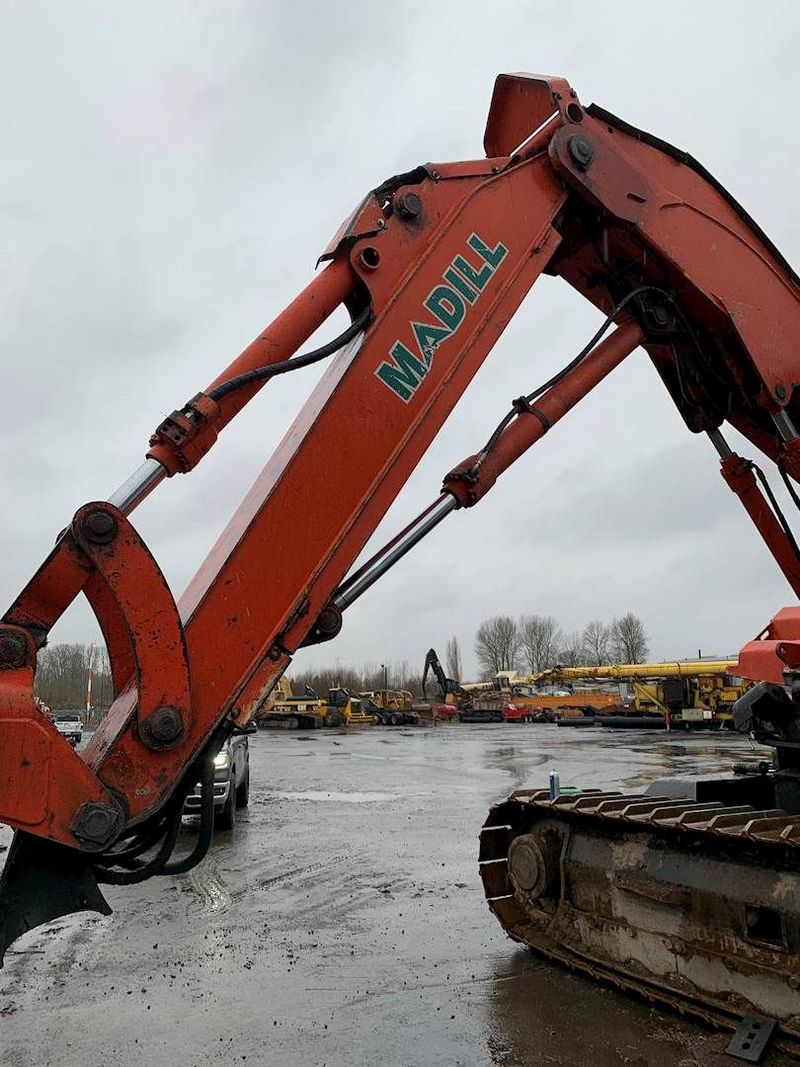

Madill T2250B
Browse All Madill or Feller Buncher Models
Contents:
Boom
| Bare Pin Lift At Max Reach | 21800 lb (9888.32 kg) |
Dimensions
| Overall Width | 10.5 ft in (3200.4 mm) |
| Height To Top Of Cab | 12.25 ft in (3733.8 mm) |
| Ground Clearance | 2.42 in (737.62 mm) |
| Tail Swing Radius | 9.17 ft in (2795.02 mm) |
| Max Reach | 26.83 ft in (8177.79 mm) |
Undercarriage
| Shoe Size | 28 in (711.2 mm) |
| Tractive Effort | 89000 lb (40369.73 kg) |
| Number Of Track Rollers Per Side | 9 Berco excavator rollers per side |
Engine
| Engine Make | 2347 |
| Engine Model | QSL |
| Gross Power | 305 hp (227.5 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 549.3 cu in (9 L) |
Operational
| Fuel Capacity | 250 gal (946.4 L) |
| Engine Oil Capacity | 64 gal (242.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed | 2.8 mph (4.6 km/h) |
| Tire Size | Tracks- 11'4" wide,15'9" Long |
| Ground Pressure | 9.8 psi (67.6 kPa) |
Transmission
| Number Of Forward Gears | 2 |
Upperstructure Leveling
| Front | 27 degrees |
| Rear | 3 degrees |
