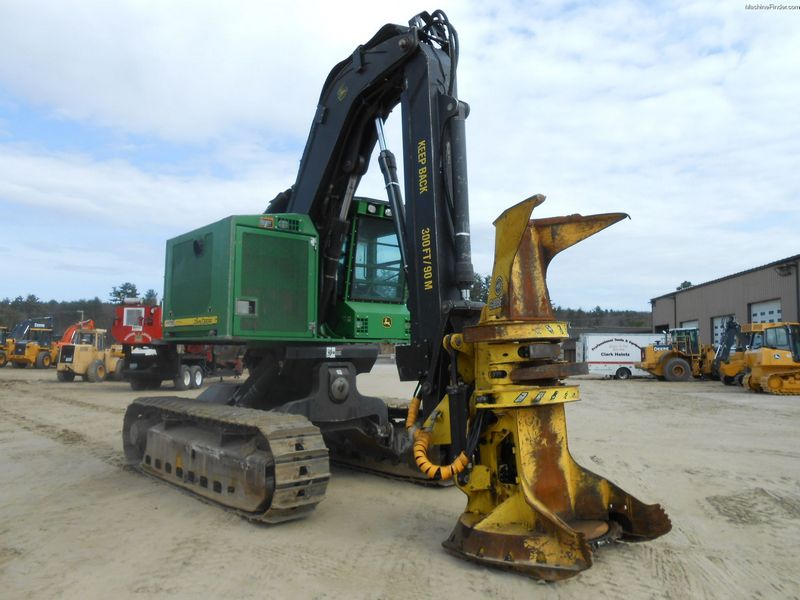

John Deere 759J
Browse All John Deere or Feller Buncher Models
Contents:
Boom
| Min Cut Radius | 11.59 ft in (3530 mm) |
| Max Cut Radius | 27.24 ft in (8300 mm) |
| Bare Pin Lift At Max Reach | 10405.82 lb (4720 kg) |
Dimensions
| Overall Width | 10 ft in (3048 mm) |
| Height To Top Of Cab | 12.9 ft in (3930 mm) |
| Length Of Track On Ground | 11.67 ft in (3560 mm) |
| Ground Clearance | 2.34 in (711 mm) |
| Tail Swing Radius | 6.33 ft in (1930 mm) |
| Max Reach | 27.24 ft in (8300 mm) |
Undercarriage
| Track Gauge | 7.98 ft in (2430 mm) |
| Shoe Size | 24 in (609.6 mm) |
| Tractive Effort | 57400 lb (26036.21 kg) |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 8 in (203.2 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6081H |
| Gross Power | 241 hp (179.8 kw) |
| Torque Measured @ | 1400 rpm |
| Net Torque | 907 lb ft (1229.8 Nm) |
| Displacement | 492 cu in (8.1 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight W/O Attachment | 60060 lb (27242.8 kg) |
| Fuel Capacity | 154 gal (583 L) |
| Cooling System Fluid Capacity | 10.2 gal (38.7 L) |
| Engine Oil Capacity | 7.4 gal (28 L) |
| Hydraulic System Fluid Capacity | 36 gal (136 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed | 2.4 mph (3.9 km/h) |
| Ground Pressure | 8.6 psi (59.3 kPa) |
Upperstructure Leveling
| Front | 27 degrees |
| Rear | 10 degrees |
| Side | 18 degrees |
