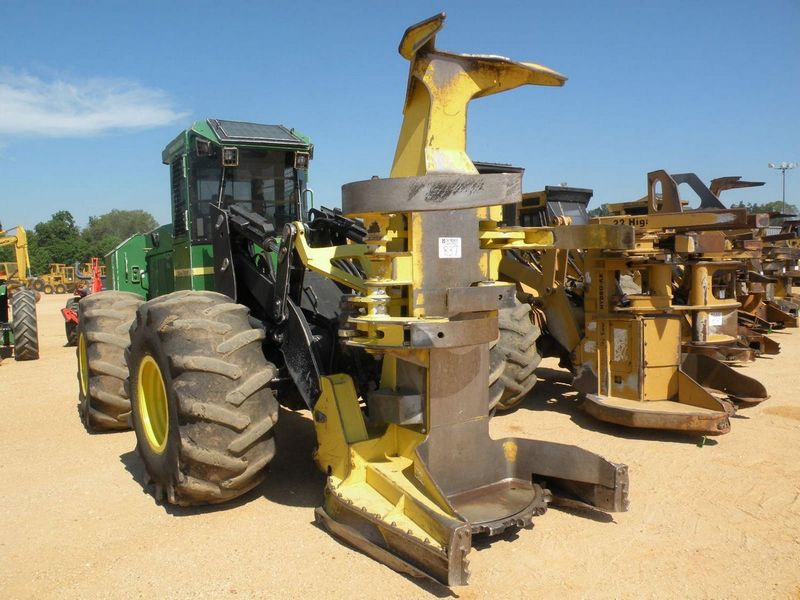

John Deere 643J
Browse All John Deere or Feller Buncher Models
Contents:
Dimensions
| Overall Length | 24.17 ft in (7367 mm) |
| Overall Width | 9.52 ft in (2900 mm) |
| Height To Top Of Cab | 10.61 ft in (3233 mm) |
| Wheelbase | 9.07 ft in (2764 mm) |
| Ground Clearance | 1.67 in (508 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Gross Power | 174 hp (129.8 kw) |
| Power Measured @ | 2200 rpm |
| Torque Measured @ | 1400 rpm |
| Net Torque | 634 lb ft (859.6 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight W/O Attachment | 27990 lb (12696.1 kg) |
| Fuel Capacity | 84 gal (318 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Engine Oil Capacity | 7.2 gal (27 L) |
| Hydraulic System Fluid Capacity | 70 gal (265 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
| Max Speed | 12.5 mph (20.2 km/h) |
| Steering Articulation | 90 degrees |
| Tire Size | 28L-26 |
| Ground Pressure | 10.6 psi (73.1 kPa) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
