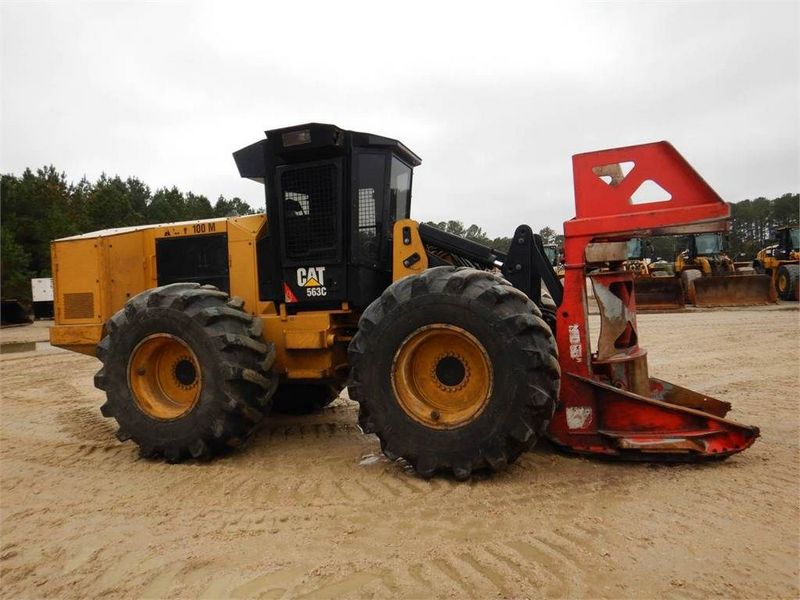

Caterpillar 563
Browse All Caterpillar or Feller Buncher Models
Contents:
Dimensions
| Overall Length | 25.2 ft in (7679.95 mm) |
| Overall Width | 9.59 ft in (2920 mm) |
| Height To Top Of Cab | 10.5 ft in (3200 mm) |
| Wheelbase | 9.42 ft in (2870 mm) |
| Ground Clearance | 21 in (533.4 mm) |
| Width - Overall - 28l Tires | 116 in (2946.4 mm) |
| Height - Overall | 125.98 in (3199.9 mm) |
| Length - With 20hc High Capacity Saw | 294.88 in (7489.96 mm) |
| Length - With 22hc High Capacity Saw | 302.36 in (7679.95 mm) |
| Wheel Base | 9.42 ft in (0.24 m) |
Operating Specifications
| Ground Clearance | 1.75 ft in (0.05 m) |
| Travel Speed - Low Range With 28l Tires | 4.97 mph (8 km/h) |
| Turning Radius - Outside Front Tires - 28l Tires | 198.03 in (5029.97 mm) |
| Articulation Angle - Left/Right - With 28l Tires | 90 degrees |
| Travel Speed - High Range With 28l Tires | 14.91 mph (24 km/h) |
Engine
| Engine Make | 2236 |
| Engine Model | C7 ACERT |
| Net Power | 197.2 hp (147 kw) |
| Power Measured @ | 1800 rpm |
| Rated Power | 1800 hp (1342.3 kw) |
| Engine Model | Cat C7 ACERT |
| Engine Power | 197 hp (147 kw) |
Operational
| Operating Weight W/O Attachment | 27275.6 lb (12372 kg) |
| Fuel Capacity | 72.2 gal (273 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
| Max Speed | 15 mph (24 km/h) |
| Steering Articulation | 90 degrees |
| Tire Size | 28L x 26 (14PR) |
Transmission
| Transmission Type | Hydrostatic transmission |
Weights
| Operating Weight - Without Attachment | 27275 lb (12371.8 kg) |
| Est. Operating Weight | 27275.6 lb (12372 kg) |
Hydraulic System
| Cylinders - Steering | 89 mm X 51 mm (3.5 in X 2.0 in) |
| Cylinders - Lift | 102 mm X 64 mm (4.0 in X 2.5 in) |
| Cylinders - Tilt | 102 mm X 64 mm (4.0 in X 2.5 in) |
| Hydrostatic Pump Flow | 48 gal/min |
| Disc Saw Pump Flow | 26 gal/min |
Service Refill Capacities
| Fuel Tank | 72 gal (272.6 L) |
