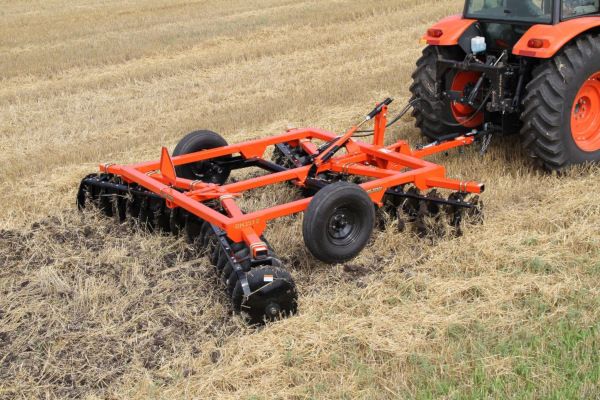

Land Pride DH3512
Browse All Land Pride or Disc Models
Contents:
Dimensions
| Transport Width | 12.33 ft in (3758.19 mm) |
| Main Frame Tires | 9.5L x 15 |
| Working Width Spacing #1 Max | 12 ft in (3657.6 mm) |
Disc System
| Spacing #1 | 7.5 in (190.5 mm) |
| Spacing #2 | 9 in (228.6 mm) |
| Blade Diameter | 22 in (558.8 mm) |
| Depth Control | Cylinder stroke control spacers |
| Weight Per Blade Spacing #1 | 76 lb (34.5 kg) |
| Weight Per Blade Spacing #2 | 81 lb (36.8 kg) |
Gangs
| Bearing Type | Greasable & Triple Sealed Ball Bearings |
