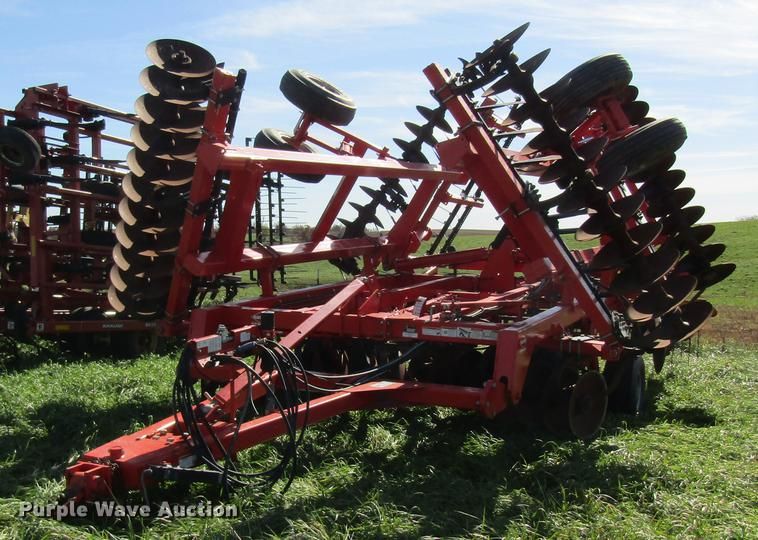

Krause 8300-31W
Contents:
Dimensions
| Transport Width | 17 ft in (5181.61 mm) |
| Transport Height | 13.83 ft in (4215.39 mm) |
| Min Weight | 16664 lb (7558.67 kg) |
| Main Frame Tires | 12.5 x 15FI, 8-bolt |
| Max Weight | 17144 lb (7776.39 kg) |
| Wing Tires | 10.00 x 15 8-ply, 6-bolt |
| Working Width Spacing #1 Min | 30.92 ft in (9424.42 mm) |
Disc System
| Spacing #1 | 10 in (254 mm) |
| Blade Diameter | 24 in (609.6 mm) |
| Blade Thickness | 0.3 in (6.4 mm) |
| Depth Control | Single location remote hydraulic |
Gangs
| Front Disk Angle | 22 degrees |
| Rear Disk Angle | 19 degrees |
| Bearing Type | SuperSeal regreasable |
| Scrapers | 5" Hi-Clearance rigid |
