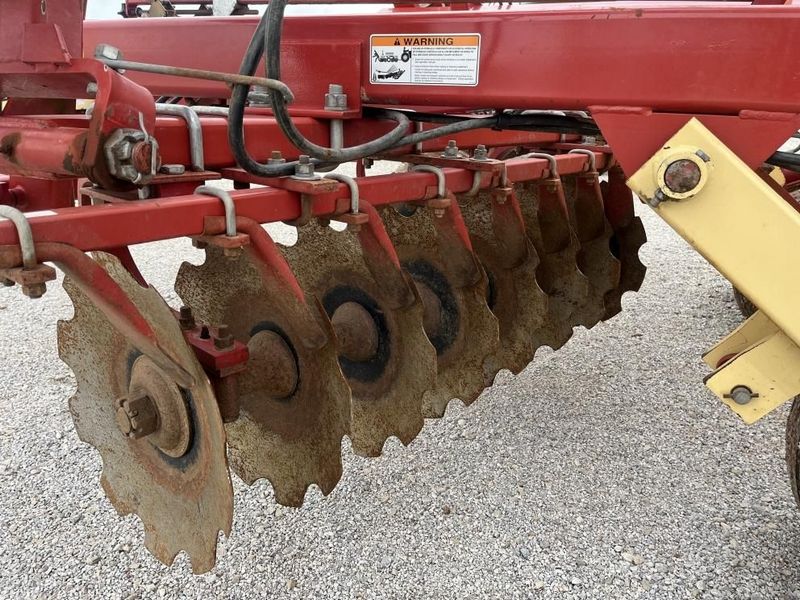

Krause 7300-34WR
Contents:
Dimensions
| Transport Width | 16.33 ft in (4977.39 mm) |
| Transport Height | 15.5 ft in (4724.4 mm) |
| Main Frame Tires | 11L x 15" 8-ply |
| Min Weight | 12812 lb (5811.43 kg) |
| Wing Tires | 11L x 15" 8-ply |
| Working Width Spacing #1 Min | 34 ft in (10363.21 mm) |
Disc System
| Spacing #1 | 9.2 in (231.8 mm) |
| Blade Diameter | 22 in (558.8 mm) |
| Depth Control | Single-location remote stop |
Gangs
| Front Disk Angle | 17 degrees |
| Rear Disk Angle | 17 degrees |
| Scrapers | 3.5" rigid |
