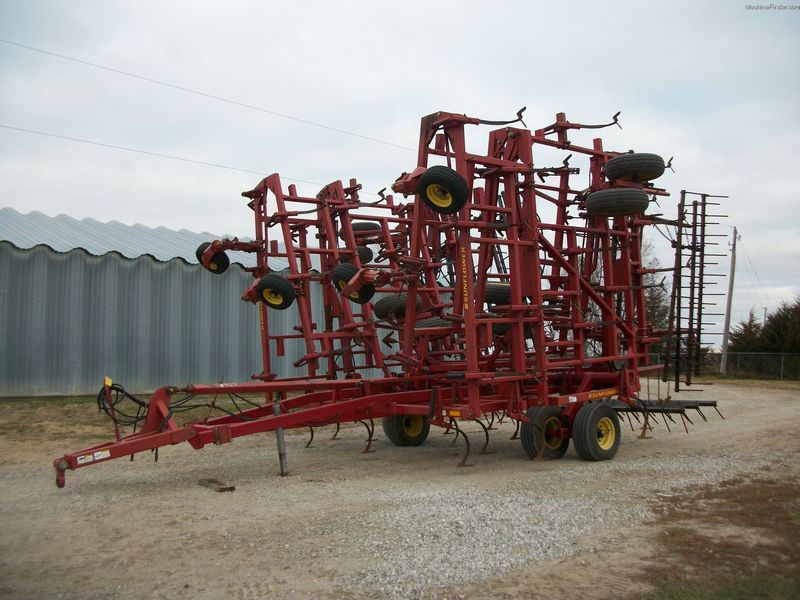

Sunflower 5054-47
Browse All Sunflower or Cultivator Models
Contents:
Dimensions
| Transport Width | 18.75 ft in (5715 mm) |
| Transport Height | 13.83 ft in (4215.39 mm) |
| Main Frame Tires | 11L x 15 tubeless tires |
| Under Frame Clearance | 24 in (609.6 mm) |
| Wing Tires | 9.5L x 15 tubeless tires |
Frame
| Min Working Width | 47.3 ft in (14.5 m) |
| Max Working Width | 47.3 ft in (14.5 m) |
| Main Frame Width | 14 ft in (4.3 m) |
| Inner Wing Width | 9 ft in (2.8 m) |
| Outer Wing Width | 7 ft in (2.2 m) |
| Spacing Option 1 | 9 in (228.6 mm) |
Operational
| Operational Weight | 13537 lb (6140.3 kg) |
