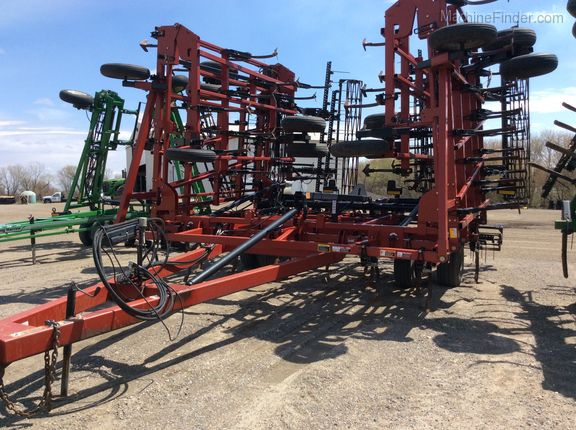

Case IH Tiger-mate II 48.5ft
Browse All Case IH or Cultivator Models
Contents:
Dimensions
| Transport Width | 18.75 ft in (5715 mm) |
| Transport Height | 13.5 ft in (4114.8 mm) |
| Pto Power Required Per Width Ft. | 5 hp (3.73 kw) |
Frame
| Frame Type | Double-fold |
| Min Working Width | 48.5 ft in (14.8 m) |
| Max Working Width | 50.5 ft in (15.4 m) |
| Main Frame Width | 14.5 ft in (4.4 m) |
Operational
| Row/Rank Spacing | 30 in (762 mm) |
| Max Speed | 8 mph (12.9 km/h) |
| Shank Trip Force | 150 lb (68.1 kg) |
| Shank Thickness | 0.7 in (15.9 mm) |
| Shank Width | 1.8 in (44.5 mm) |
Harrow
| Option 1 Type | 3-Bar Coil Tine |
| Effective Spike/Tine Spacing | 2 in (50.8 mm) |
| Option 2 Type | 4-Bar Tiger-Tine |
| Spike/Tine Length | 11 in (279.4 mm) |
| Spike/Tine Spacing | 7.5 in (190.5 mm) |
| Option 3 Type | 5-Bar Spike Tooth |
