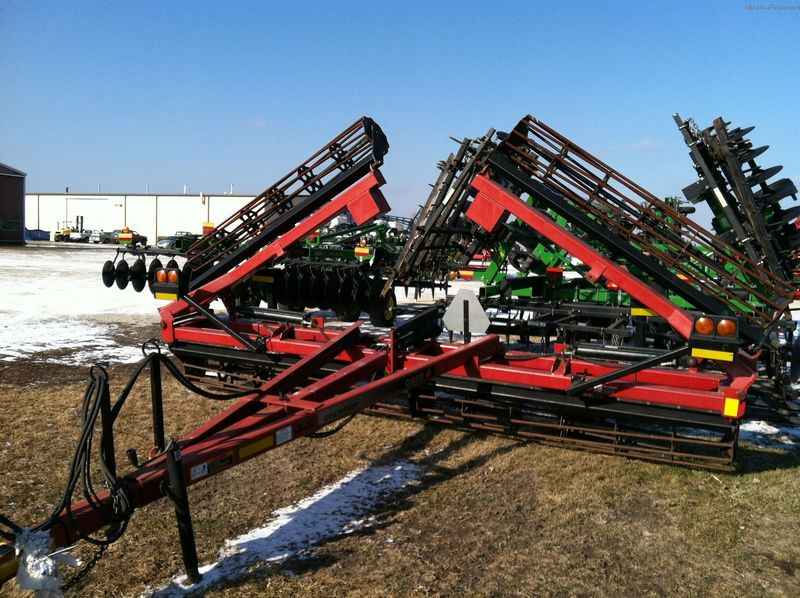

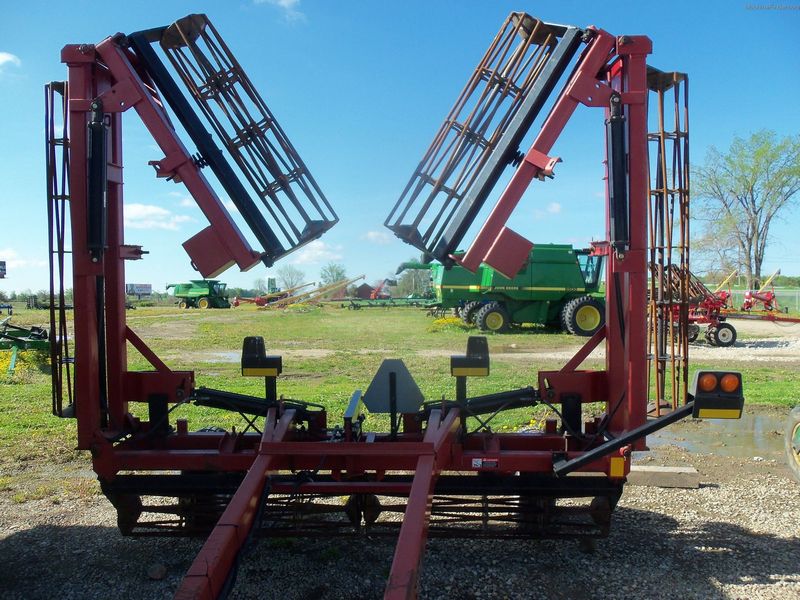

Case IH Crumbler 30ft double-fold
Browse All Case IH or Cultivator Models
Contents:
Dimensions
| Transport Width | 16 ft in (4876.8 mm) |
| Transport Height | 9.42 ft in (2871.22 mm) |
| Pto Power Required Per Width Ft. | 1 hp (0.75 kw) |
Frame
| Frame Type | Double-fold |
| Min Working Width | 30 ft in (9.2 m) |
| Max Working Width | 30 ft in (9.2 m) |
| Main Frame Width | 10 ft in (3.1 m) |
Operational
| Row/Rank Spacing | 15 in (381 mm) |
| Max Speed | 8 mph (12.9 km/h) |
Harrow
| Effective Spike/Tine Spacing | 4 in (101.6 mm) |
| Spike/Tine Length | 16 in (406.4 mm) |
| Basket Diameter | 14 in (355.6 mm) |
| Bar Size | 1/4 x 1.25 in. |
| Basket Down Pressure | 60 lb (27.3 kg) |
