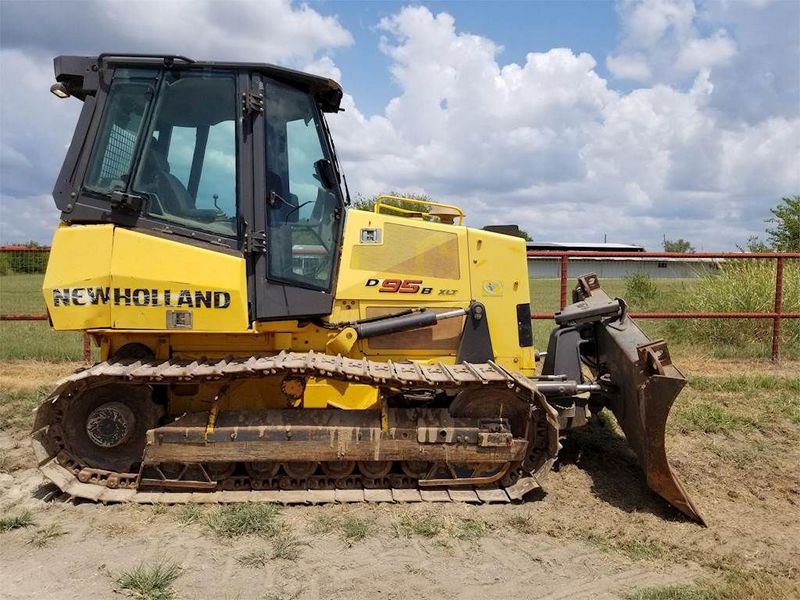

New Holland D95B LT
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 13.97 ft in (4258 mm) |
| Width Over Tracks | 8.49 ft in (2585 mm) |
| Height To Top Of Cab | 9.15 ft in (2788 mm) |
| Length Of Track On Ground | 7.72 ft in (2352 mm) |
| Ground Clearance | 1.22 ft in (369 mm) |
| Length W/O Blade | 10.71 ft in (3263 mm) |
Undercarriage
| Track Gauge | 5.17 ft in (1575 mm) |
| Standard Shoe Size | 18.12 in (460 mm) |
| Number Of Shoes Per Side | 40 |
| Number Of Carrier Rollers Per Side | 7 |
| Ground Pressure | 5.82 psi (40.13 kPa) |
| Number Of Track Rollers Per Side | 1 |
| Track Pitch | 6.74 in (171 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | FPT 445TA/E66 |
| Gross Power | 99 hp (73.9 kw) |
| Net Power | 96 hp (71.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 295 lb ft (400 Nm) |
| Displacement | 275 cu in (4.6 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 19625.6 lb (8902 kg) |
| Fuel Capacity | 50 gal (189 L) |
| Cooling System Fluid Capacity | 6 gal (22.5 L) |
| Engine Oil Capacity | 3.3 gal (12.3 L) |
| Hydraulic Fluid Capacity | 20 gal (75.7 L) |
| Final Drives Fluid Capacity | 3.8 gal (14.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 10 |
| Number Of Reverse Gears | 10 |
| Max Speed - Forward | 5.5 mph (8.9 km/h) |
| Max Speed - Reverse | 5.5 mph (8.9 km/h) |
Hydraulic System
| Pump Type | Geaar |
| Pump Flow Capacity | 20.3 gal/min (76.8 L/min) |
Standard Blade
| Width | 8.2 ft in (2490 mm) |
| Height | 35.9 in (910 mm) |
| Capacity | 2.2 yd3 (1.7 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 19.1 in (483 mm) |
