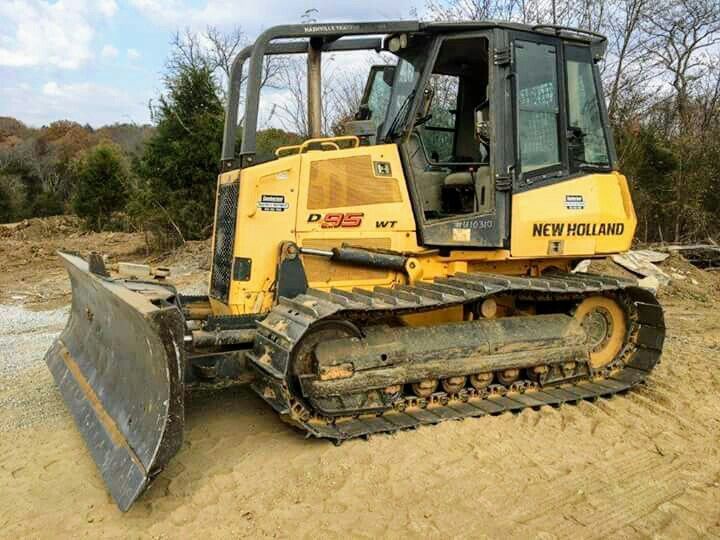

New Holland D95 WT
Browse All New Holland or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 13.97 ft in (4258 mm) |
| Width Over Tracks | 9.26 ft in (2820 mm) |
| Height To Top Of Cab | 9.1 ft in (2773 mm) |
| Length Of Track On Ground | 7.75 ft in (2360 mm) |
| Ground Clearance | 1.25 ft in (379 mm) |
| Length W/O Blade | 10.71 ft in (3263 mm) |
Undercarriage
| Track Gauge | 5.84 ft in (1780 mm) |
| Standard Shoe Size | 24.02 in (610 mm) |
| Number Of Shoes Per Side | 40 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 4.54 psi (31.3 kPa) |
| Number Of Track Rollers Per Side | 7 |
| Track Pitch | 6.74 in (171 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2249 |
| Engine Model | 667T/M2 |
| Gross Power | 99 hp (73.9 kw) |
| Net Power | 96 hp (71.6 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 325.3 lb ft (441 Nm) |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 20201 lb (9163 kg) |
| Fuel Capacity | 50.1 gal (189.3 L) |
| Cooling System Fluid Capacity | 5 gal (18.9 L) |
| Engine Oil Capacity | 4.2 gal (15.8 L) |
| Hydraulic Fluid Capacity | 20 gal (75.8 L) |
| Final Drives Fluid Capacity | 3.8 gal (14.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 10 Total |
| Max Speed - Forward | 6 mph (9.7 km/h) |
Hydraulic System
| Pump Type | Gear |
| Pump Flow Capacity | 20.3 gal/min (76.9 L/min) |
Standard Blade
| Width | 10.1 ft in (3050 mm) |
| Height | 35.9 in (910 mm) |
| Capacity | 2.6 yd3 (2 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 19.1 in (483 mm) |
