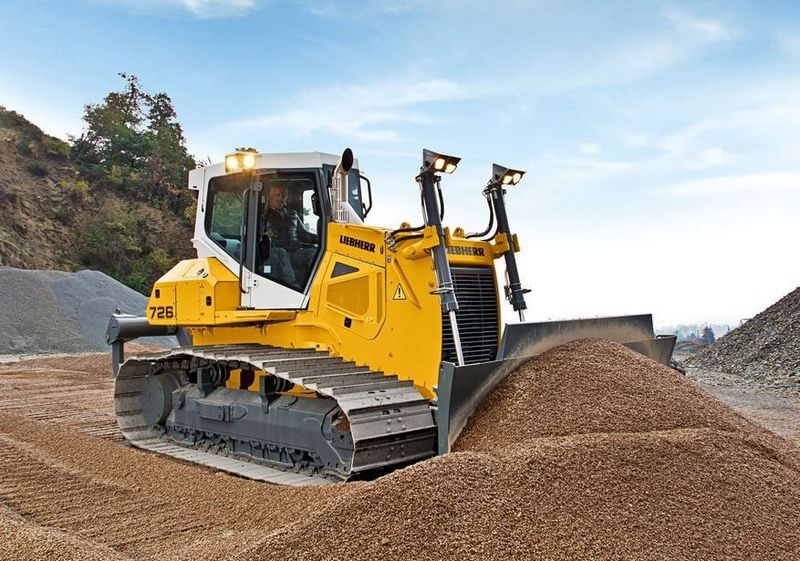

Liebherr PR726 LITRONIC
Browse All Liebherr or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 7.75 ft in (2360 mm) |
| Height To Top Of Cab | 10.52 ft in (3205 mm) |
| Length Of Track On Ground | 10.4 ft in (3168 mm) |
| Ground Clearance | 1.41 ft in (429 mm) |
| Track Gauge | 5.91 ft in (1800 mm) |
Undercarriage
| Number Of Track Rollers Per Side | 8 |
| Track Shoe Width | 24.02 in (610 mm) |
| Number Of Carrier Rollers Per Side | 2 |
Engine
| Starter | 10.5 hp (7.8 kw) |
| Lubrication System | Pressurised lube system |
| Injection System | Direct fuel injection |
| Battery | 2 x 180 Ah |
| Engine Model | D 934 A7 Emission regulations , EPA/CARB Tier 4f |
| Cooling System | Hydrostatic fan drive |
| Air Cleaner | Dry-type air cleaner |
| Net Power | 161 hp (120 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 427.2 cu in (7 L) |
| Aspiration | Turbochanged |
| Max Power | 187.8 hp (140 kw) |
Operational
| Def Tank Capacity | 13.3 gal (50 L) |
| Operating Weight | 44092.5 lb (20000 kg) |
| Fuel Capacity | 113.6 gal (430 L) |
| Cooling System Fluid Capacity | 10.9 gal (41 L) |
| Engine Oil Capacity | 7.7 gal (29 L) |
| Hydraulic Fluid Capacity | 29.4 gal (111 L) |
| Final Drives Fluid Capacity | 4.3 gal (16 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
Transmission
| Steering | Hydrostatic |
| Transmission Type | Infinitely variable hydrostatic travel drive, independent drive for each track |
| Max Speed - Reverse | 2.5 mph (4.1 km/h) |
Hydraulic System
| System Pressure | 2290 psi (15789 kPa) |
| Hydraulic System | Swash plate piston pump |
| Controls | Single joystick for all blade functions |
| Control Valve | 2 segments, expandable to 4 |
| Pump Type | Swash plate piston pump |
| Pump Flow Capacity | 39.1 gal/min (148 L/min) |
| Filtration | Return filter with magnetic rod in the hydraulic tank |
Standard Blade
| Width | 10.6 ft in (3204 mm) |
| Height | 47.3 in (1200 mm) |
| Capacity | 4.2 yd3 (3.2 m3) |
| Cutting Depth | 18.8 in (475 mm) |
| Lifting Height | 3.8 ft in (1147 mm) |
| Transport Width | 9.9 ft in (2997 mm) |
| Blade Pitch Adjustment | 5 degrees |
| Blade Angle Adjustment | 23 degrees |
| Max. Blade Tilt | 1.6 ft in (473 mm) |
| Overall Length, Blade Straight | 18.2 ft in (5547 mm) |
| Overall Length, Blade Angled | 20.1 ft in (6118 mm) |
Brakes
| Parking Brake | Multi-disk brake, wear-free, automatically applied with neutral joystick position |
| Service Brake | Hydrostatic (self-locking), wear-free |
| Travel Control | Single joystick for all travel and steering functions. Optional: detented Joystick, with inching pedal |
