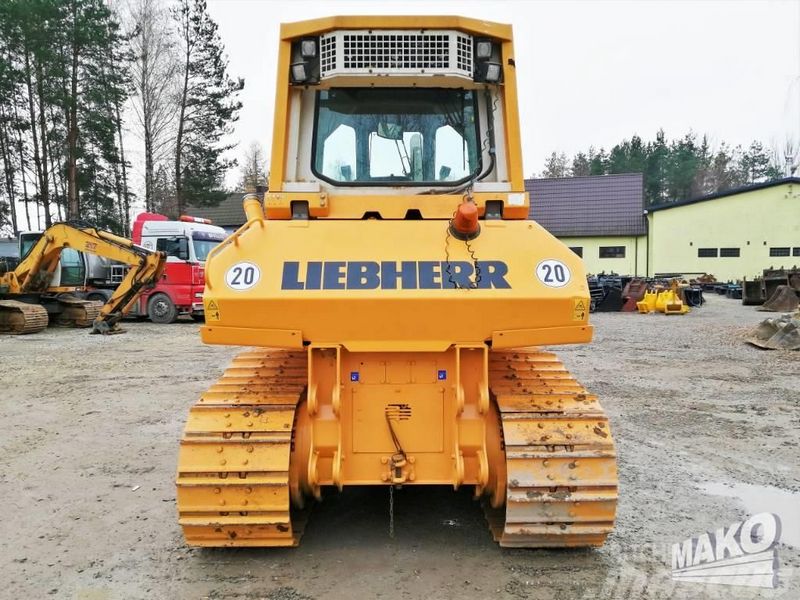

Liebherr PR724 L
Browse All Liebherr or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 8.69 ft in (2648 mm) |
| Height To Top Of Cab | 10.49 ft in (3197 mm) |
| Length Of Track On Ground | 9.29 ft in (2830 mm) |
| Ground Clearance | 1.56 ft in (475 mm) |
| Length W/O Blade | 13.69 ft in (4170 mm) |
Undercarriage
| Track Gauge | 5.91 ft in (1800 mm) |
| Standard Shoe Size | 24 in (609.6 mm) |
| Number Of Shoes Per Side | 2 |
| Number Of Track Rollers Per Side | 7 |
| Ground Pressure | 6.83 psi (47.1 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2245 |
| Engine Model | D 924 TI-E |
| Gross Power | 160 hp (119.4 kw) |
| Net Power | 158 hp (117.9 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 402.8 cu in (6.6 L) |
| Aspiration | Direct injection turbo-charged |
Operational
| Operating Weight | 36729.1 lb (16660 kg) |
| Fuel Capacity | 96.5 gal (365 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Hydraulic Fluid Capacity | 42.8 gal (162 L) |
| Final Drives Fluid Capacity | 4.9 gal (18.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Infinitely variable hydrostatic travel drive independent drive for each frame |
| Max Speed - Forward | 6.9 mph (11 km/h) |
| Max Speed - Reverse | 4.9 mph (7.8 km/h) |
Hydraulic System
| Pump Type | swash plate piston pump |
| Relief Valve Pressure | 2900 psi (19994.8 kPa) |
| Pump Flow Capacity | 46 gal/min (174 L/min) |
Standard Blade
| Width | 10.6 ft in (3204 mm) |
| Height | 47.3 in (1200 mm) |
| Capacity | 4.2 yd3 (3.2 m3) |
| Blade Angle (Both Directions) | 23 degrees |
| Cutting Depth | 20.5 in (520 mm) |
