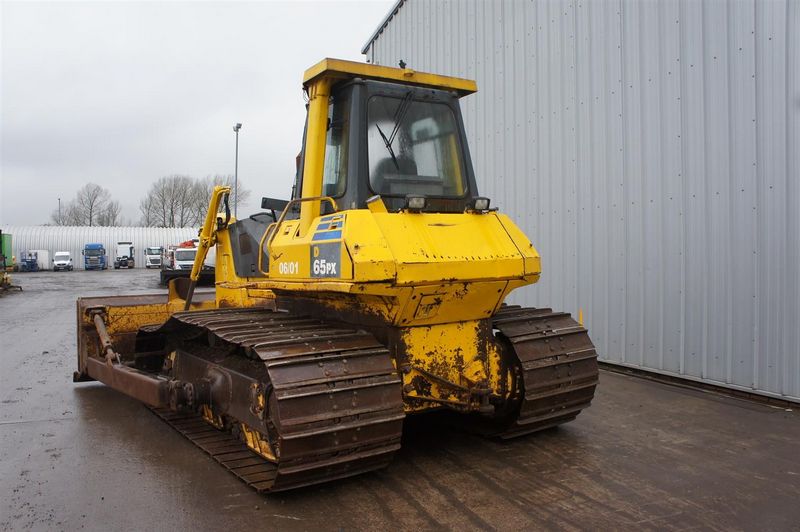

Komatsu D65PX-12E
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 18.21 ft in (5550 mm) |
| Width Over Tracks | 9.85 ft in (3000 mm) |
| Height To Top Of Cab | 10.14 ft in (3090 mm) |
| Length Of Track On Ground | 10.78 ft in (3285 mm) |
| Ground Clearance | 1.68 ft in (510 mm) |
| Length W/O Blade | 14.54 ft in (4430 mm) |
Undercarriage
| Track Gauge | 6.73 ft in (2050 mm) |
| Standard Shoe Size | 37.41 in (950 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Track Pitch | 8 in (203.2 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D125E-2-A |
| Gross Power | 2615 hp (1950 kw) |
| Power Measured @ | 1950 rpm |
| Displacement | 67.2 cu in (1.1 L) |
Operational
| Operating Weight | 44643.7 lb (20250 kg) |
Transmission
| Transmission Type | TF,HSS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 13.1 ft in (3970 mm) |
| Height | 43.4 in (1100 mm) |
