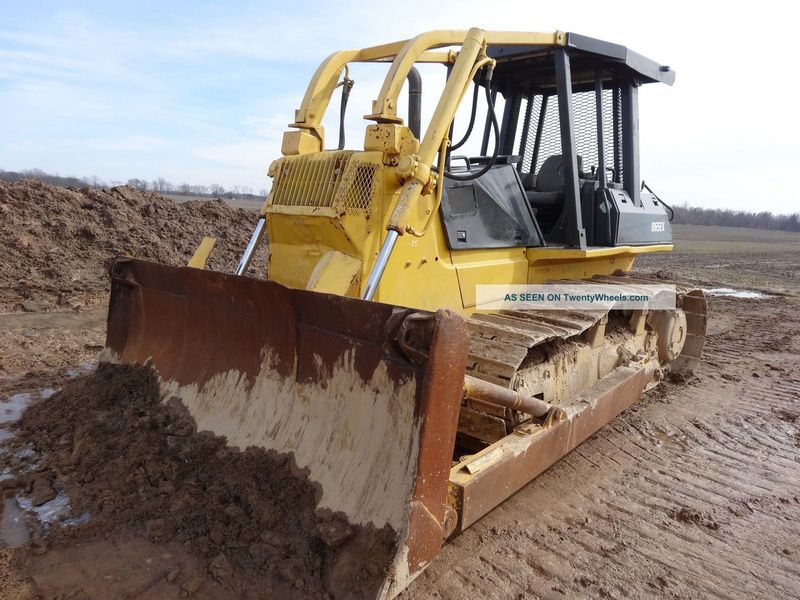

Komatsu D65EC-12E
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17.26 ft in (5260 mm) |
| Width Over Tracks | 11.21 ft in (3415 mm) |
| Height To Top Of Cab | 10.03 ft in (3055 mm) |
| Length Of Track On Ground | 8.78 ft in (2675 mm) |
| Ground Clearance | 1.33 ft in (405 mm) |
| Length W/O Blade | 14.34 ft in (4370 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
Engine
| Engine Make | 2238 |
| Engine Model | S6D125E-2 |
| Displacement | 11040 cu in (181 L) |
Operational
| Operating Weight | 34568.5 lb (15680 kg) |
Transmission
| Transmission Type | TF |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 11.3 ft in (3415 mm) |
| Height | 48.3 in (1225 mm) |
