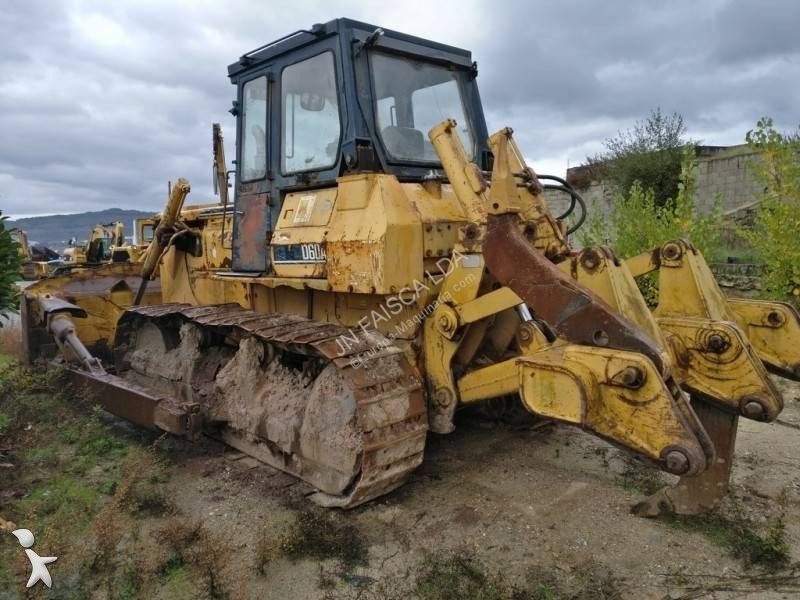

Komatsu D60A-8
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 17 ft in (5180 mm) |
| Width Over Tracks | 7.85 ft in (2390 mm) |
| Height To Top Of Cab | 9.9 ft in (3015 mm) |
| Length Of Track On Ground | 7.98 ft in (2430 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Length W/O Blade | 13.36 ft in (4070 mm) |
Undercarriage
| Track Gauge | 6.17 ft in (1880 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 8 in (203.2 mm) |
| Number Of Shoes Per Side | 37 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | 6D125-1 |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 1850 rpm |
| Displacement | 673.8 cu in (11.1 L) |
Operational
| Operating Weight | 35252 lb (15990 kg) |
Transmission
| Transmission Type | DD |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 4 |
Standard Blade
| Width | 13.1 ft in (3970 mm) |
| Height | 41.4 in (1050 mm) |
