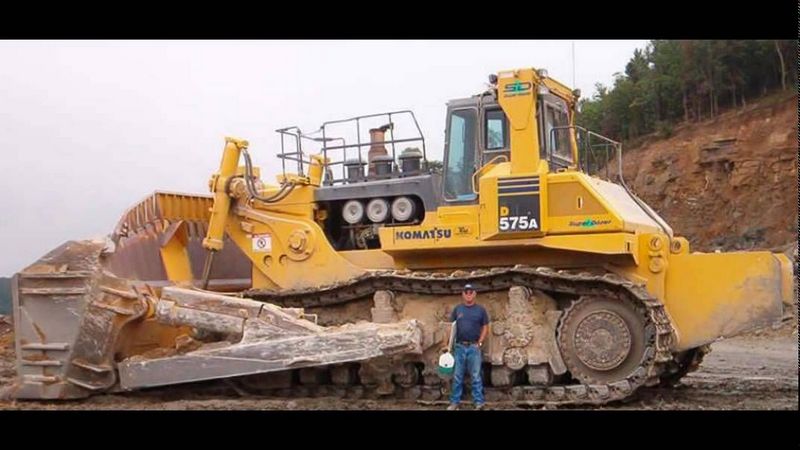

Komatsu D575A-3SD
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 38.46 ft in (11720 mm) |
| Width Over Tracks | 10.58 ft in (3220 mm) |
| Height To Top Of Cab | 16 ft in (4880 mm) |
| Ground Clearance | 2.42 ft in (745 mm) |
Undercarriage
| Standard Shoe Size | 34 in (860 mm) |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 49 |
| Ground Pressure | 23 psi (159 kPa) |
| Ground Contact Area | 14623 in2 (9.44 m2) |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2238 |
| Engine Model | SA12V170E |
| Net Power | 1150 hp (858 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 2825 cu in (46.3 L) |
| Aspiration | turbocharged, aftercooled |
Operational
| Operating Weight | 252600 lb (114580 kg) |
| Fuel Capacity | 555 gal (2100 L) |
| Cooling System Fluid Capacity | 79 gal (298 L) |
| Engine Oil Capacity | 52 gal (195 L) |
| Hydraulic Fluid Capacity | 79 gal (300 L) |
| Final Drives Fluid Capacity | 42 gal (160 L) |
Transmission
| Transmission Type | Komatsu TORQFLOW transmission |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 7.5 mph (11.6 km/h) |
| Max Speed - Reverse | 8.3 mph (13.3 km/h) |
Hydraulic System
| Relief Valve Pressure | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 332 gal/min (1258 L/min) |
Standard Blade
| Width | 24.3 ft in (7400 mm) |
| Height | 12 in (3640 mm) |
| Cutting Depth | 2.7 in (805 mm) |
