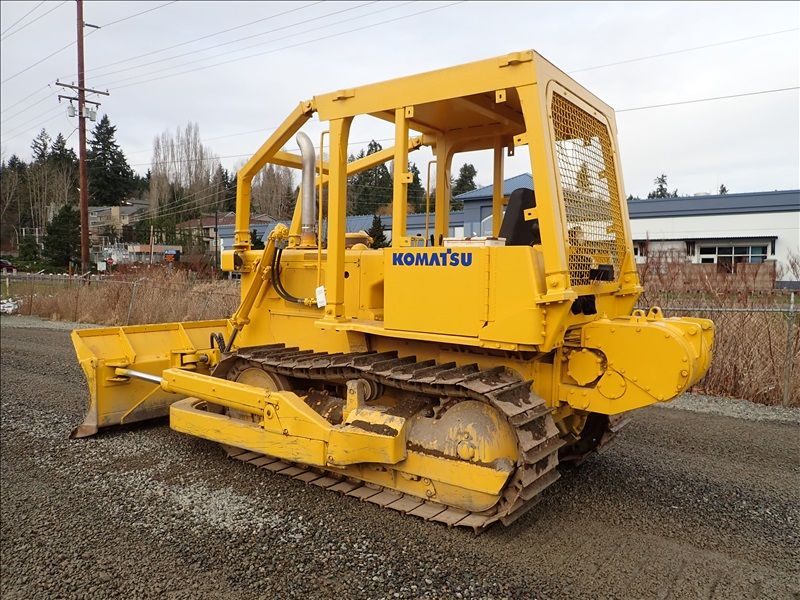

Komatsu D45A-1
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 13.95 ft in (4250 mm) |
| Width Over Tracks | 6.37 ft in (1940 mm) |
| Height To Top Of Cab | 8.6 ft in (2620 mm) |
| Length Of Track On Ground | 6.76 ft in (2060 mm) |
| Ground Clearance | 1.19 ft in (360 mm) |
| Length W/O Blade | 10.8 ft in (3290 mm) |
Undercarriage
| Track Gauge | 5.06 ft in (1540 mm) |
| Standard Shoe Size | 15.75 in (400 mm) |
| Number Of Shoes Per Side | 37 |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Pressure | 7.17 psi (49.44 kPa) |
| Number Of Track Rollers Per Side | 5 |
| Track Pitch | 6.89 in (175 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D105-1 |
| Gross Power | 90 hp (67.2 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 242.9 cu in (4 L) |
Operational
| Operating Weight | 21054.2 lb (9550 kg) |
| Fuel Capacity | 55.5 gal (210 L) |
| Cooling System Fluid Capacity | 11.4 gal (43 L) |
Transmission
| Transmission Type | TF |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 5.6 mph (9 km/h) |
| Max Speed - Reverse | 6.8 mph (10.8 km/h) |
Standard Blade
| Width | 10.4 ft in (3150 mm) |
| Height | 29.6 in (750 mm) |
| Cutting Depth | 15 in (380 mm) |
