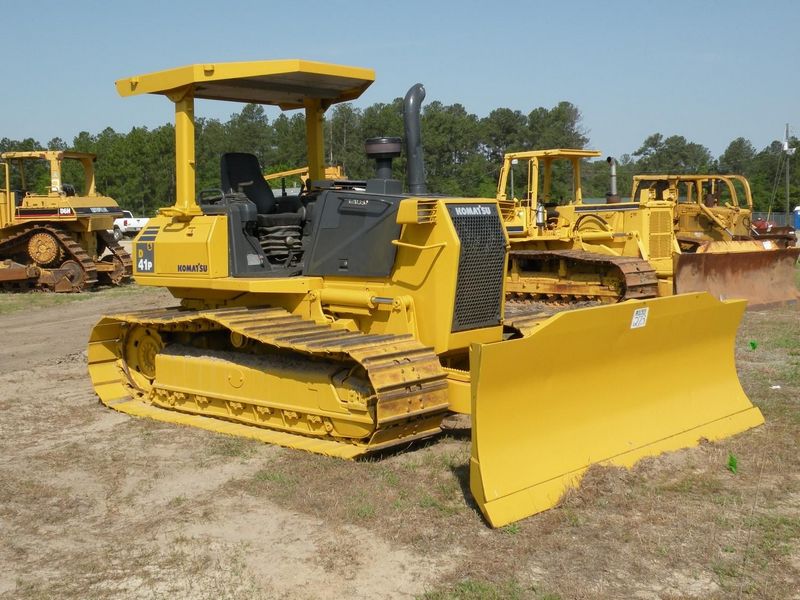

Komatsu D41P-6
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 16.06 ft in (4895 mm) |
| Width Over Tracks | 8.17 ft in (2490 mm) |
| Height To Top Of Cab | 9.47 ft in (2885 mm) |
| Length Of Track On Ground | 9.01 ft in (2745 mm) |
| Ground Clearance | 1.45 ft in (440 mm) |
Undercarriage
| Track Gauge | 5.88 ft in (1790 mm) |
| Standard Shoe Size | 27.56 in (700 mm) |
| Track Pitch | 6.76 in (171.5 mm) |
| Number Of Shoes Per Side | 44 |
| Ground Pressure | 3.38 psi (23.3 kPa) |
| Number Of Carrier Rollers Per Side | 1 |
| Ground Contact Area | 5956.67 in2 (3.85 m2) |
| Number Of Track Rollers Per Side | 7 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D102E-1 |
| Gross Power | 106 hp (79.1 kw) |
| Power Measured @ | 2400 rpm |
| Displacement | 360.1 cu in (5.9 L) |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 25573.7 lb (11600 kg) |
| Fuel Capacity | 59.5 gal (225 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity | 6.1 gal (22.8 L) |
| Hydraulic Fluid Capacity | 9.8 gal (37 L) |
| Powertrain Fluid Capacity | 5.1 gal (19 L) |
| Final Drives Fluid Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 40 amps |
Transmission
| Transmission Type | Hydroshift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 4.8 mph (7.6 km/h) |
| Max Speed - Reverse | 5.9 mph (9.4 km/h) |
Hydraulic System
| Pump Type | closed center load sensing |
| Relief Valve Pressure | 2987.8 psi (20600 kPa) |
Standard Blade
| Width | 10 ft in (3045 mm) |
| Height | 41.8 in (1060 mm) |
| Capacity | 3.5 yd3 (2.6 m3) |
| Cutting Depth | 19.3 in (490 mm) |
