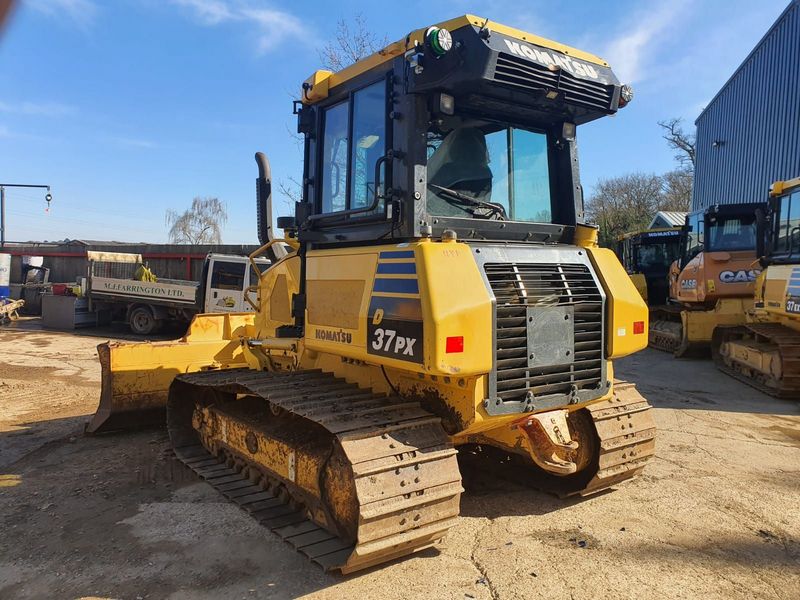

Komatsu D37PX-23
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 14.03 ft in (4275 mm) |
| Height To Top Of Cab | 9.11 ft in (2775 mm) |
| Length Of Track On Ground | 7.32 ft in (2230 mm) |
| Ground Clearance | 1.07 ft in (325 mm) |
Undercarriage
| Track Gauge | 5.62 ft in (1710 mm) |
| Standard Shoe Size | 600 in (15240 mm) |
| Ground Pressure | 4.67 psi (32.2 kPa) |
| Number Of Track Rollers Per Side | 6 |
| Number Of Shoes Per Side | 41 |
| Ground Contact Area | 4148 in2 (2.68 m2) |
| Number Of Carrier Rollers Per Side | 1 |
Engine
| Engine Make | Komatsu |
| Engine Model | SAA4D95LE-6 |
| Gross Power | 91 hp (67.9 kw) |
| Net Power | 89 hp (66.4 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 199 cu in (3.3 L) |
Operational
| Operating Weight | 16887.5 lb (7660 kg) |
| Fuel Capacity | 50.2 gal (190 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Engine Oil Capacity | 3 gal (11 L) |
| Hydraulic Fluid Capacity | 17 gal (64 L) |
| Final Drives Fluid Capacity | 1 gal (3.5 L) |
Transmission
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 5.3 mph (8.6 km/h) |
| Max Speed - Reverse | 5.3 mph (8.6 km/h) |
Hydraulic System
| Relief Valve Pressure | 3974 psi (27399.8 kPa) |
| Pump Flow Capacity | 26.2 gal/min (99 L/min) |
