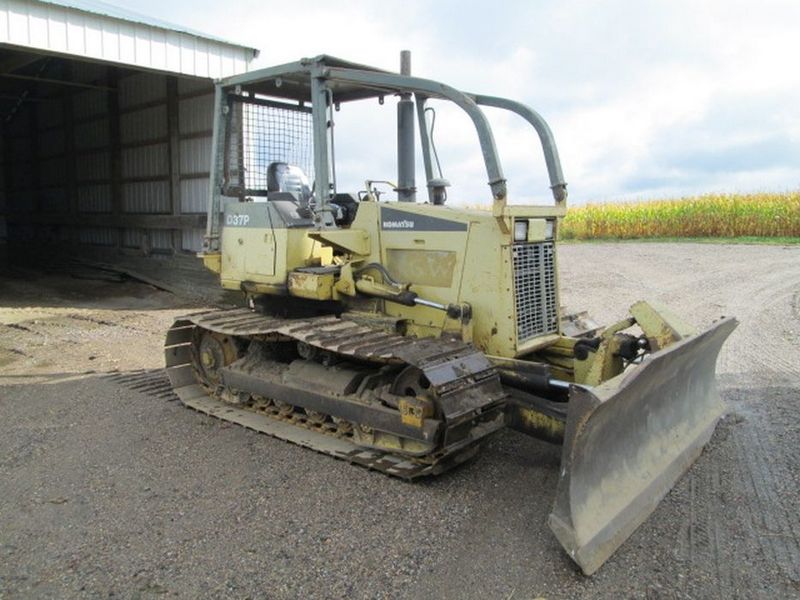

Komatsu D37P-5E
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 12.93 ft in (3940 mm) |
| Width Over Tracks | 7.39 ft in (2250 mm) |
| Height To Top Of Cab | 8.98 ft in (2735 mm) |
| Length Of Track On Ground | 7.17 ft in (2185 mm) |
| Ground Clearance | 1.25 ft in (380 mm) |
| Length W/O Blade | 9.95 ft in (3030 mm) |
Undercarriage
| Track Gauge | 5.42 ft in (1650 mm) |
| Standard Shoe Size | 23.63 in (600 mm) |
| Number Of Carrier Rollers Per Side | 1 |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.07 in (154 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | S4D102E-1-A |
| Gross Power | 81 hp (60.5 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 239.3 cu in (4 L) |
Operational
| Operating Weight | 15476.5 lb (7020 kg) |
Transmission
| Transmission Type | HS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Standard Blade
| Width | 9.5 ft in (2875 mm) |
| Height | 35.3 in (895 mm) |
