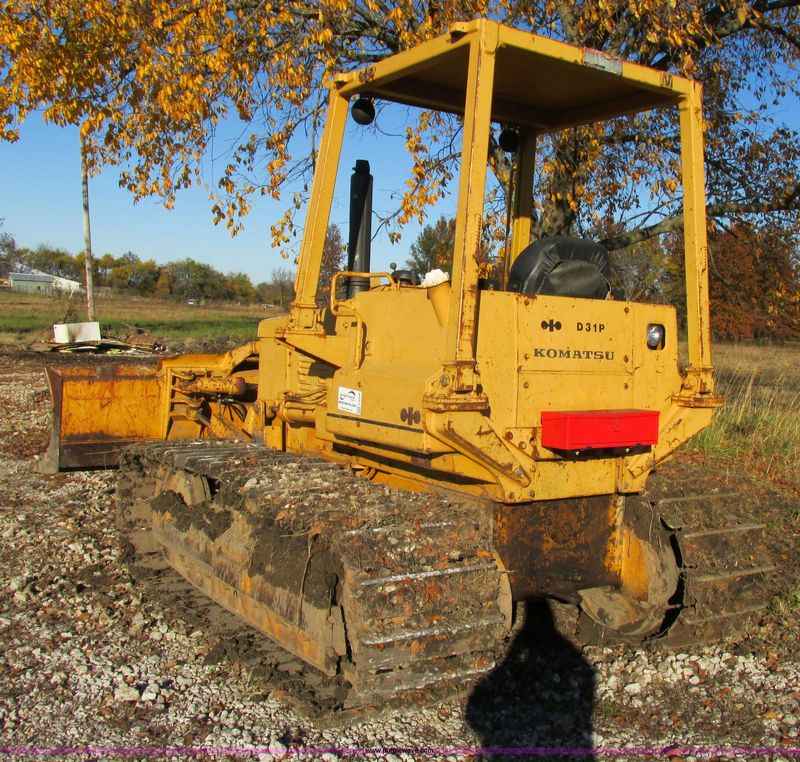

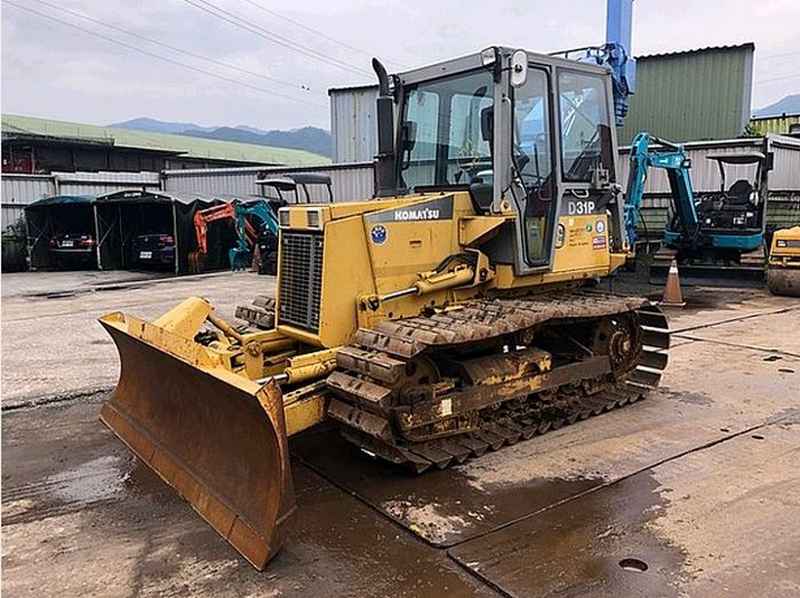

Komatsu D31P-16
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 12.64 ft in (3850 mm) |
| Width Over Tracks | 6.73 ft in (2050 mm) |
| Height To Top Of Cab | 8.7 ft in (2650 mm) |
| Length Of Track On Ground | 7.17 ft in (2185 mm) |
| Ground Clearance | 1.27 ft in (385 mm) |
| Length W/O Blade | 9.95 ft in (3030 mm) |
Undercarriage
| Track Gauge | 4.76 ft in (1450 mm) |
| Standard Shoe Size | 23.63 in (600 mm) |
| Number Of Track Rollers Per Side | 6 |
| Ground Pressure | 3.12 psi (21.52 kPa) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D 105-3 |
| Gross Power | 63 hp (47 kw) |
| Power Measured @ | 2350 rpm |
| Displacement | 264.3 cu in (4.4 L) |
Operational
| Operating Weight | 14771 lb (6700 kg) |
| Fuel Capacity | 30.4 gal (115 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
Transmission
| Transmission Type | HS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 4.1 mph (6.5 km/h) |
| Max Speed - Reverse | 4.5 mph (7.1 km/h) |
Standard Blade
| Width | 8.2 ft in (2480 mm) |
| Height | 30.8 in (780 mm) |
| Capacity | 2 yd3 (1.6 m3) |
| Cutting Depth | 13.8 in (350 mm) |
