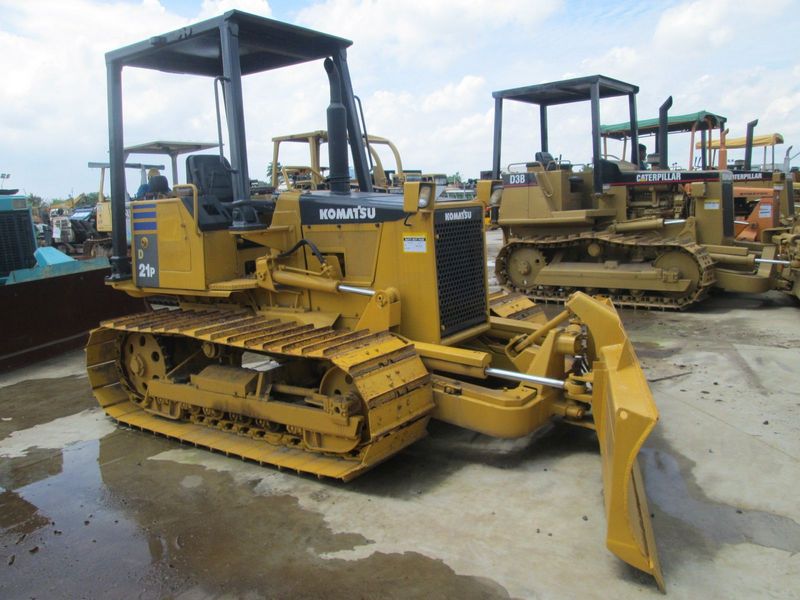

Komatsu D21PL-6
Browse All Komatsu or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 11.34 ft in (3455 mm) |
| Width Over Tracks | 7.19 ft in (2190 mm) |
| Height To Top Of Cab | 8.16 ft in (2485 mm) |
| Length Of Track On Ground | 5.98 ft in (1820 mm) |
| Ground Clearance | 1.12 ft in (340 mm) |
| Length W/O Blade | 8.7 ft in (2650 mm) |
Undercarriage
| Track Gauge | 4.89 ft in (1490 mm) |
| Standard Shoe Size | 27.56 in (700 mm) |
| Number Of Shoes Per Side | 39 |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 5.32 in (135 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2238 |
| Engine Model | 4D95S-W1 |
| Gross Power | 40 hp (29.9 kw) |
| Power Measured @ | 2450 rpm |
| Displacement | 180.7 cu in (3 L) |
Operational
| Operating Weight | 8994.9 lb (4080 kg) |
Transmission
| Transmission Type | HS |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 2 |
Standard Blade
| Width | 8.2 ft in (2490 mm) |
| Height | 23.3 in (590 mm) |
