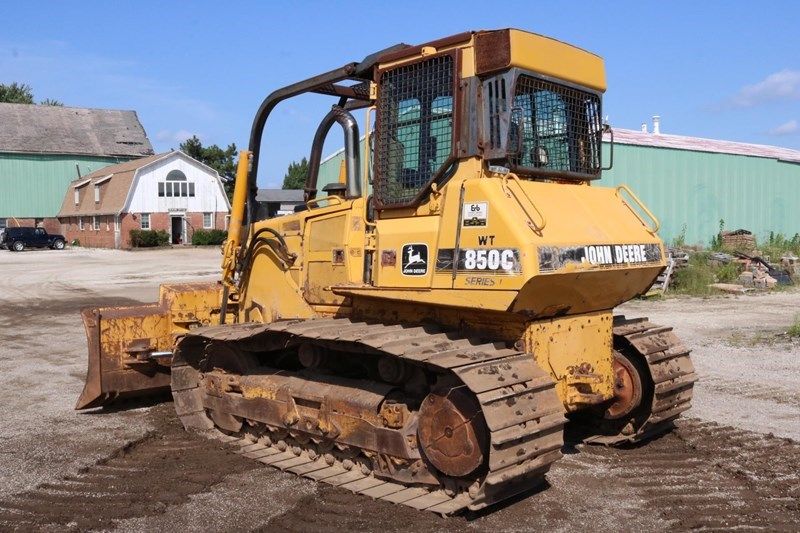

John Deere 850C WT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 11.67 ft in (3556 mm) |
| Height To Top Of Cab | 10.34 ft in (3151 mm) |
| Length Of Track On Ground | 9 ft in (2743 mm) |
| Ground Clearance | 1.34 ft in (406 mm) |
Undercarriage
| Standard Shoe Size | 30 in (762 mm) |
| Ground Pressure | 6.3 psi (43.4 kPa) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 7 |
| Track Pitch | 8 in (203 mm) |
| Ground Contact Area | 6480 in2 (4.19 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6081A |
| Gross Power | 192 hp (143.2 kw) |
| Net Power | 185 hp (138 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 601 lb ft (814.9 Nm) |
| Displacement | 494 cu in (8.1 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Altitude-compensating turbocharger; aftercooled |
Operational
| Operating Weight | 41070 lb (18668 kg) |
| Fuel Capacity | 92 gal (348 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Engine Oil Capacity | 8.6 gal (32.2 L) |
| Hydraulic Fluid Capacity | 21 gal (79.5 L) |
| Powertrain Fluid Capacity | 27 gal (102.2 L) |
| Final Drives Fluid Capacity | 3.3 gal (12.3 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
Transmission
| Transmission Type | Automatic, dual-path, hydrostatic drive |
| Max Speed - Forward | 6.8 mph (11 km/h) |
| Max Speed - Reverse | 6.8 mph (11 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 2250 psi (15514 kPa) |
| Pump Flow Capacity | 44 gal/min (166 L/min) |
Standard Blade
| Width | 11.7 ft in (3556 mm) |
| Height | 56.5 in (1435 mm) |
| Capacity | 8.1 yd3 (6.2 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 20.2 in (513 mm) |
