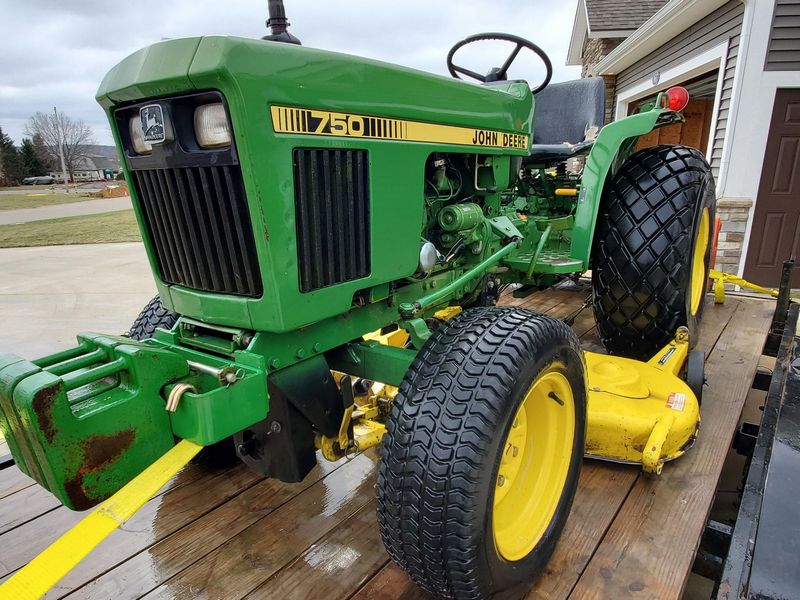

John Deere 750
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 10 ft in (3048 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 300 Series |
| Net Power | 110 hp (82.1 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 345 lb ft (467.8 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 29300 lb (11810 kg) |
| Fuel Capacity | 73 gal (276.3 L) |
| Cooling System Fluid Capacity | 7 gal (26.5 L) |
| Engine Oil Capacity | 5 gal (18.9 L) |
| Hydraulic Fluid Capacity | 33 gal (124.9 L) |
| Final Drives Fluid Capacity | 8.5 gal (32.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Hydrostatic: variable speed |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 2000 psi (13790 kPa) |
| Pump Flow Capacity | 38 gal/min (144 L/min) |
