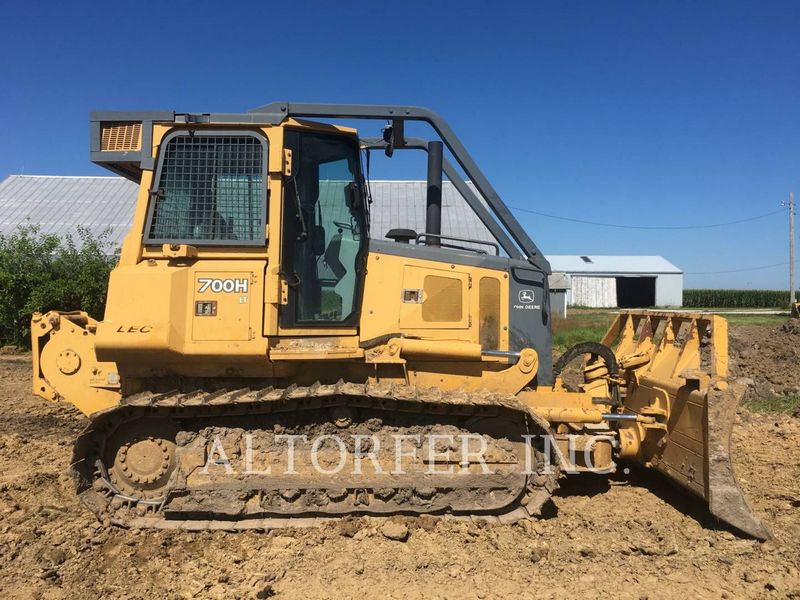

John Deere 700H LT
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 7.5 ft in (2286 mm) |
| Height To Top Of Cab | 9.8 ft in (2985 mm) |
| Length Of Track On Ground | 7.93 ft in (2415 mm) |
| Ground Clearance | 1.25 ft in (381 mm) |
| Length W/O Blade | 15.03 ft in (4580 mm) |
Undercarriage
| Ground Pressure | 6.8 psi (47 kPa) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.91 in (175.5 mm) |
| Ground Contact Area | 3818 in2 (2.47 m2) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | PowerTech 6068T |
| Gross Power | 123 hp (91.8 kw) |
| Net Power | 115 hp (85.8 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 410 lb ft (555.9 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharger |
Operational
| Operating Weight | 25800 lb (11703 kg) |
| Fuel Capacity | 60 gal (227 L) |
| Cooling System Fluid Capacity | 5.6 gal (21 L) |
| Engine Oil Capacity | 5.1 gal (19 L) |
| Hydraulic Fluid Capacity | 13.5 gal (51 L) |
| Powertrain Fluid Capacity | 17.2 gal (65 L) |
| Final Drives Fluid Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Transmission
| Transmission Type | Dual-path, electronic-controlled, hydrostatic drive |
| Max Speed - Forward | 5.5 mph (8.9 km/h) |
| Max Speed - Reverse | 5.5 mph (8.9 km/h) |
Hydraulic System
| Pump Type | Gear, fixed-displacement pump |
| Relief Valve Pressure | 3200 psi (22064 kPa) |
| Pump Flow Capacity | 25 gal/min (95 L/min) |
Standard Blade
| Width | 10 ft in (3048 mm) |
| Height | 39 in (998 mm) |
| Capacity | 3.5 yd3 (2.7 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 20 in (500 mm) |
