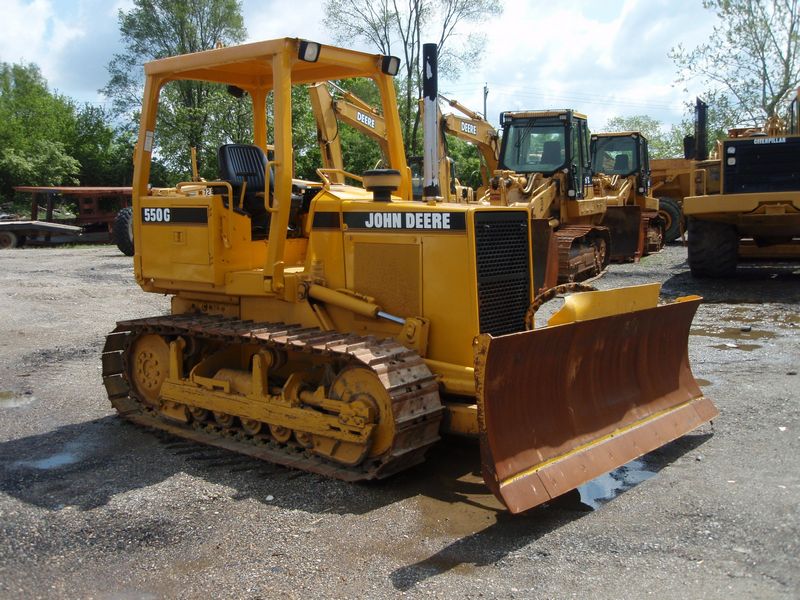

John Deere 550
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 8 ft in (2438.4 mm) |
| Ground Clearance | 1.84 ft in (558.8 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 300 Series |
| Net Power | 72 hp (53.7 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 230 lb ft (311.9 Nm) |
| Displacement | 276 cu in (4.6 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 15750 lb (7144.1 kg) |
| Fuel Capacity | 36 gal (136.3 L) |
| Cooling System Fluid Capacity | 5 gal (19 L) |
| Hydraulic Fluid Capacity | 6.4 gal (24.3 L) |
| Final Drives Fluid Capacity | 1.6 gal (5.9 L) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
Hydraulic System
| Pump Type | Open-Center |
| Relief Valve Pressure | 1750 psi (12065.9 kPa) |
| Pump Flow Capacity | 15 gal/min (56.8 L/min) |
