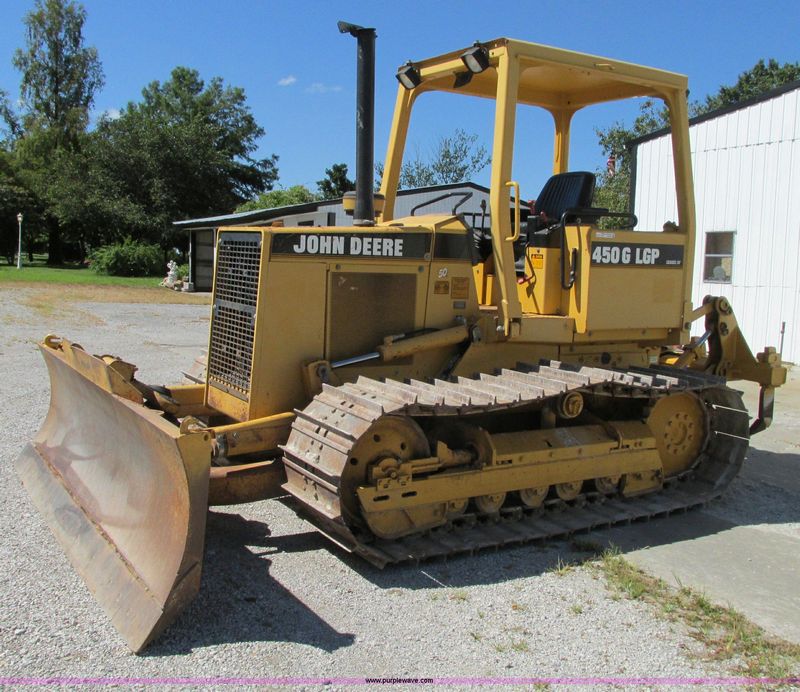

John Deere 450G LPG
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 7.75 ft in (2362 mm) |
| Height To Top Of Cab | 8.99 ft in (2740 mm) |
| Length Of Track On Ground | 7.09 ft in (2160 mm) |
| Ground Clearance | 1.19 ft in (362 mm) |
Undercarriage
| Standard Shoe Size | 24 in (610 mm) |
| Ground Pressure | 4.25 psi (29.3 kPa) |
| Number Of Shoes Per Side | 40 |
| Number Of Track Rollers Per Side | 6 |
| Track Pitch | 6.29 in (159.81 mm) |
| Ground Contact Area | 4099 in2 (2.65 m2) |
Engine
| Engine Make | 2240 |
| Engine Model | e 4045T |
| Gross Power | 73 hp (54.5 kw) |
| Net Power | 70 hp (52 kw) |
| Displacement | 276 cu in (4.6 L) |
| Aspiration | Altitude compensating turbocharged |
Operational
| Operating Weight | 17432 lb (7924 kg) |
| Fuel Capacity | 41 gal (155.2 L) |
| Cooling System Fluid Capacity | 4.5 gal (17 L) |
| Engine Oil Capacity | 2.3 gal (8.5 L) |
| Hydraulic Fluid Capacity | 14.6 gal (55.3 L) |
| Powertrain Fluid Capacity | 27 gal (102 L) |
| Final Drives Fluid Capacity | 1.8 gal (6.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Transmission
| Transmission Type | Full power shift, Dura-Shift with torque converter |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 6 mph (9.6 km/h) |
| Max Speed - Reverse | 6 mph (9.6 km/h) |
Hydraulic System
| Pump Type | Gear |
| Relief Valve Pressure | 2750 psi (18961 kPa) |
| Pump Flow Capacity | 17 gal/min (64 L/min) |
Standard Blade
| Width | 8.1 ft in (2464 mm) |
| Height | 32.6 in (827 mm) |
| Capacity | 2 yd3 (1.5 m3) |
| Blade Angle (Both Directions) | 25 degrees |
| Cutting Depth | 19.9 in (504 mm) |
