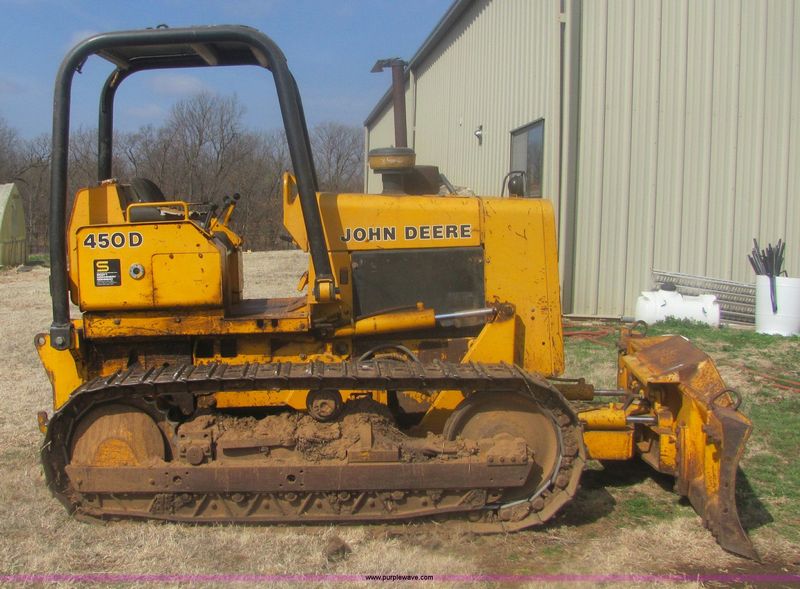

John Deere 450D
Browse All John Deere or Crawler Tractor Models
Contents:
Dimensions
| Width Over Tracks | 7.42 ft in (2261.62 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2240 |
| Engine Model | 300 Series |
| Net Power | 67 hp (50 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 190 lb ft (257.7 Nm) |
| Displacement | 219 cu in (3.6 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 14400 lb (6531.8 kg) |
| Fuel Capacity | 31 gal (117.3 L) |
| Cooling System Fluid Capacity | 4 gal (15.1 L) |
| Engine Oil Capacity | 2.3 gal (8.5 L) |
| Hydraulic Fluid Capacity | 7 gal (26.5 L) |
| Final Drives Fluid Capacity | 1.6 gal (5.9 L) |
| Operating Voltage | 12 V |
Transmission
| Transmission Type | HLR:4 speed ranges with high, low and reverse |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
Hydraulic System
| Pump Type | Open Center |
| Relief Valve Pressure | 2000 psi (13789.6 kPa) |
| Pump Flow Capacity | 17.1 gal/min (64.8 L/min) |
