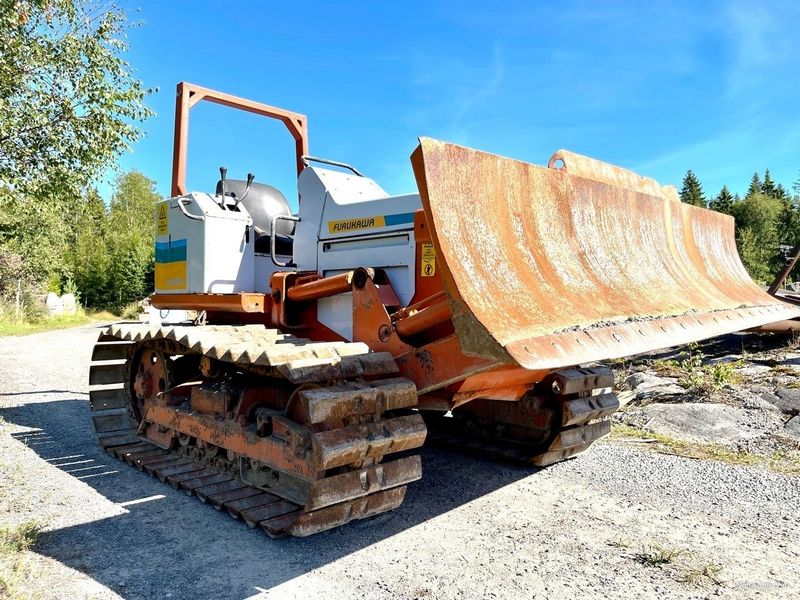

Furukawa FD40P
Browse All Furukawa or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 11.44 ft in (3485 mm) |
| Width Over Tracks | 6.57 ft in (2000 mm) |
| Height To Top Of Cab | 8.21 ft in (2500 mm) |
| Length Of Track On Ground | 5.53 ft in (1685 mm) |
| Ground Clearance | 0.94 ft in (285 mm) |
| Length W/O Blade | 8.04 ft in (2450 mm) |
Undercarriage
| Track Gauge | 4.89 ft in (1490 mm) |
| Standard Shoe Size | 20.08 in (510 mm) |
| Number Of Track Rollers Per Side | 5 |
| Track Pitch | 5.32 in (135 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2353 |
| Engine Model | 4JB1 |
| Gross Power | 40 hp (29.9 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 169.1 cu in (2.8 L) |
Operational
| Operating Weight | 9347.7 lb (4240 kg) |
Transmission
| Transmission Type | DD |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 2 |
Standard Blade
| Width | 8.4 ft in (2560 mm) |
| Height | 23.3 in (590 mm) |
