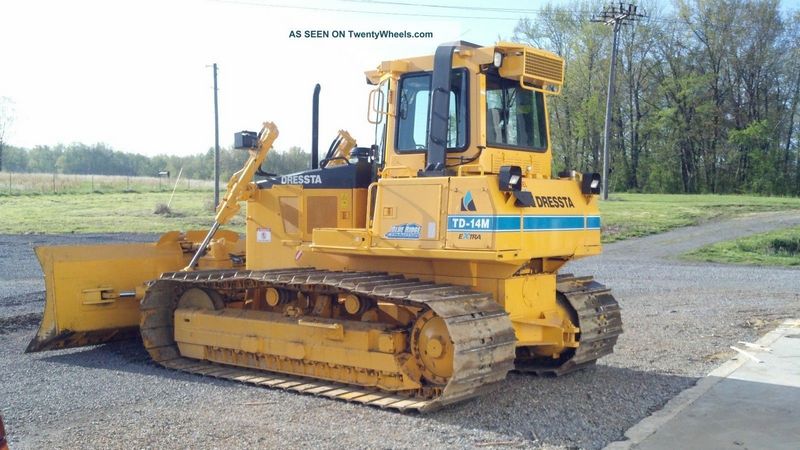

Dressta TD14M LGP
Browse All Dressta or Crawler Tractor Models
Contents:
Dimensions
| Length W/ Blade | 18.18 ft in (5540 mm) |
| Width Over Tracks | 10.01 ft in (3050 mm) |
| Height To Top Of Cab | 10.63 ft in (3240 mm) |
| Length Of Track On Ground | 10.41 ft in (3170 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Length W/O Blade | 13.78 ft in (4200 mm) |
Undercarriage
| Track Gauge | 7.03 ft in (2140 mm) |
| Standard Shoe Size | 36.03 in (915 mm) |
| Number Of Carrier Rollers Per Side | 8 |
| Ground Pressure | 4.6 psi (31.72 kPa) |
| Ground Contact Area | 8990 in2 (5.8 m2) |
| Number Of Shoes Per Side | 46 |
| Number Of Track Rollers Per Side | 2 |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Gross Power | 173 hp (129.1 kw) |
| Net Power | 160 hp (119.4 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 659 lb ft (893.5 Nm) |
| Displacement | 408 cu in (6.7 L) |
| Torque Measured @ | 1350 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 40124.2 lb (18200 kg) |
| Fuel Capacity | 100.4 gal (380 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Engine Oil Capacity | 4.9 gal (18.5 L) |
| Hydraulic Fluid Capacity | 15.6 gal (59 L) |
| Powertrain Fluid Capacity | 33.1 gal (125 L) |
| Final Drives Fluid Capacity | 7.4 gal (28 L) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 6.8 mph (10.8 km/h) |
| Max Speed - Reverse | 8.1 mph (12.9 km/h) |
Hydraulic System
| Relief Valve Pressure | 2540 psi (17512.7 kPa) |
| Pump Flow Capacity | 30.2 gal/min (114 L/min) |
Standard Blade
| Width | 12.8 ft in (3880 mm) |
| Height | 46.1 in (1170 mm) |
| Capacity | 5 yd3 (3.8 m3) |
| Cutting Depth | 21.2 in (536 mm) |
